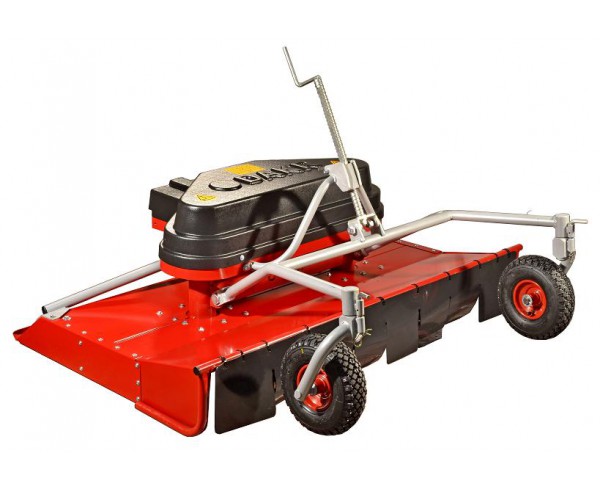

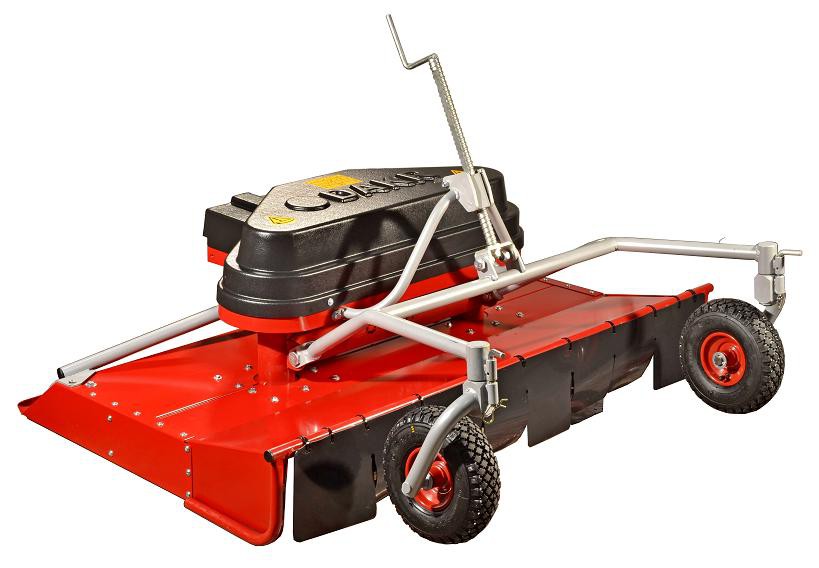

M121 Two-blade mulcher

M121 Two-blade mulcher

adaptor compatible with Panter FD3 and FD5 driving units; operating width 121 cm
More information
Order No.:01236.005
Max. operating width: 121 cm
In connection with Panter FD3 driving unit constitutes the highest-efficiency combination for mulching of large areas such as fields and pastures. Blades travel overlap and the surface is therefore evenly mowed. Blades timing is secured by the chains. The construction solution is protected by Utility Designs.

M121 two-blade mulcher specifications:
Max. output with FD3:9,680 m2/hour
Max. operating width:121 cm
Cutting mechanism:2 horizontal mulching blades Oregon
Blades drive:the blade timing is provided by means of chains in order to ensure overlapping blade routes
Adaptor connection:enables the mulcher horizontally tilting and it copies the terrain better

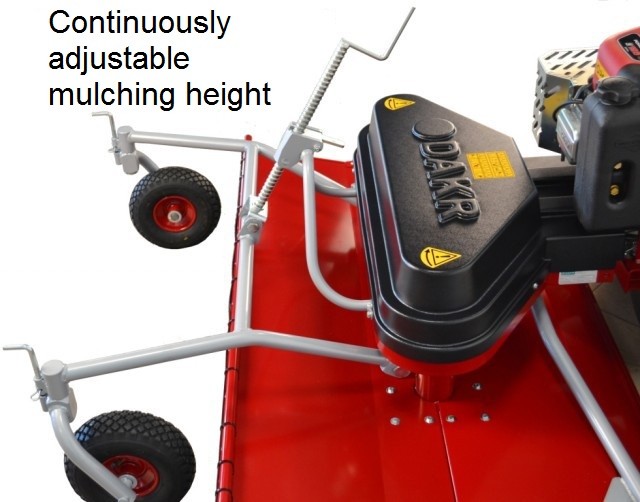

Stubble height:3-10 cm, central height setting of the stubble height with locking
Weight:87 kg
Options:seat for flat grounds and slight slopes
Recommended maintained area:unlimited
Compatible driving units:FD3eco, FD3-500, FD5








Compatible adaptors
  • Panter FD3-500
    Panter FD3-500

    modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD3eco
    Panter FD3eco

    modular Panter driving unit; max. output 13.2 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
