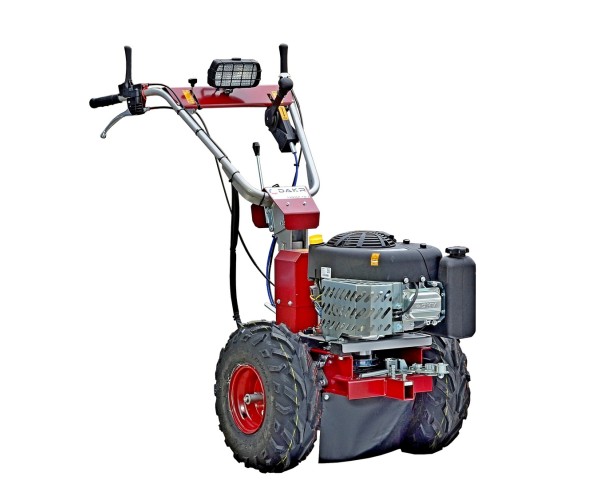

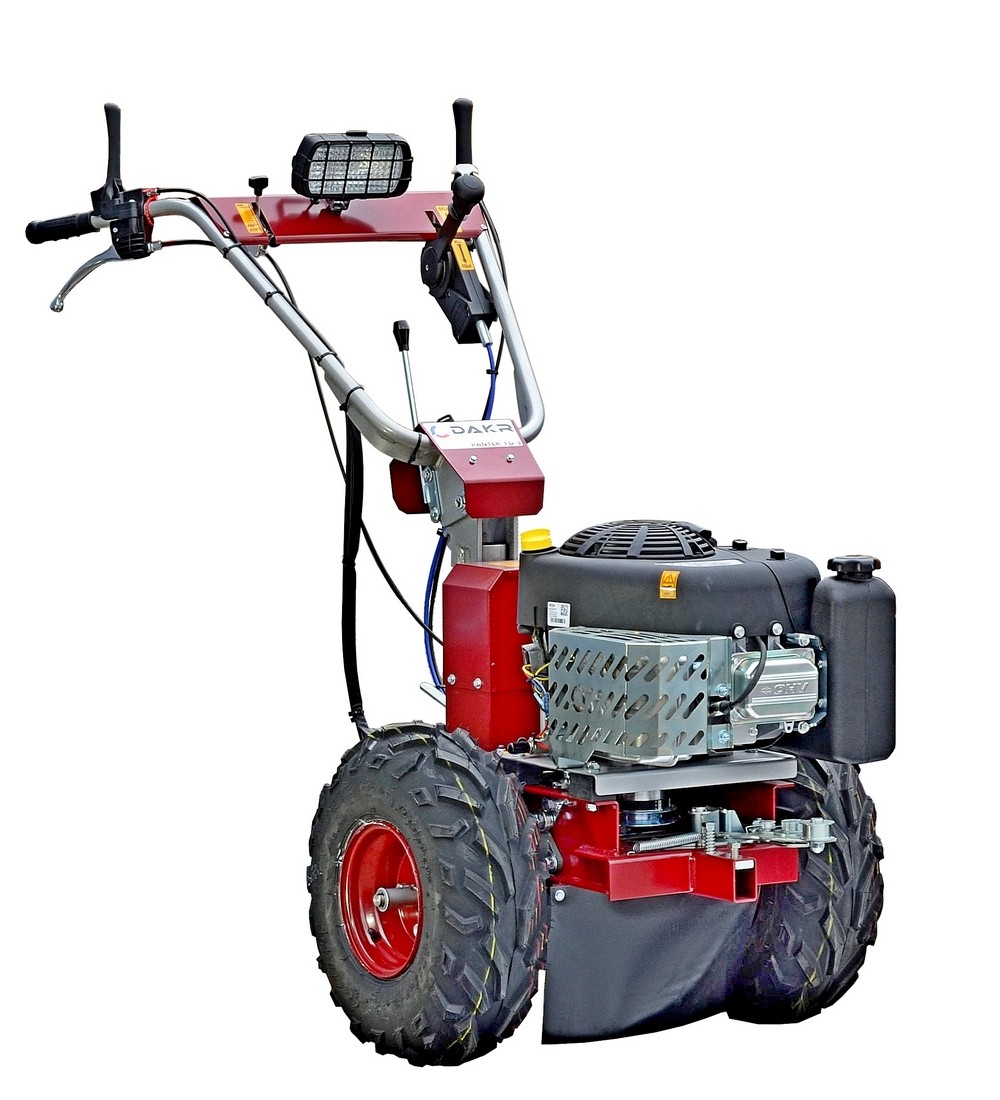

Panter FD3-500 driving unit

Panter FD3-500 driving unit

modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
More information
Order No.:01236.001
Engine: Briggs&Stratton 15.5 HP
Travel: yes, single slide control of speed forward and backward
The more powerful Panter FD3-500 driving unit fitted with Briggs&Stratton I/C, Powerbuilt OHV with capacity 500 cc. Even the customers who bought the machine with B&S engine 344 cc can replace it with this stronger one.

To the driving unit it is possible to connect the seat and the wide range of adaptors such as mulcher, haymaker, snow blower, cart, sweeping brush, blade, rotavator, branch crusher.

Specifications:
Travel:yes, single slide control of speed forward and backward
Speeds:forward 0÷8 km/hour, backward 0÷4 km/hour
Axletree:lockable differential
Gearbox:hydrostatic Tuff Torq K46
Other equipment:driving brake, parking brake, headlight, charging battery
Engine vibration attenuation:4 silent blocks
Handlebars:height and side adjustable
Tyres:big blown wheels 480 mm with V-shaped tread pattern
Wheels outer profile:760 mm (extendable to 940 mm)
Weight:120 kg
Engine:4-stroke Briggs&Stratton I/C, Powerbuilt OHV
Fuel:gasoline Natural 95
Engine capacity:500 cc
Cylinder:cast iron sleeve
Max. engine output:15.5 HP/11.3 kW
Torque at 2,600 rpm:30.0 Nm
Engine lubricaton:spray
Engine starting:electro-starter, manual reserve starter
Slope accessibility:safe slope accessibility guaranteed by the state testing institute 10°
the engine operates safely at a constant tilt of 20°
