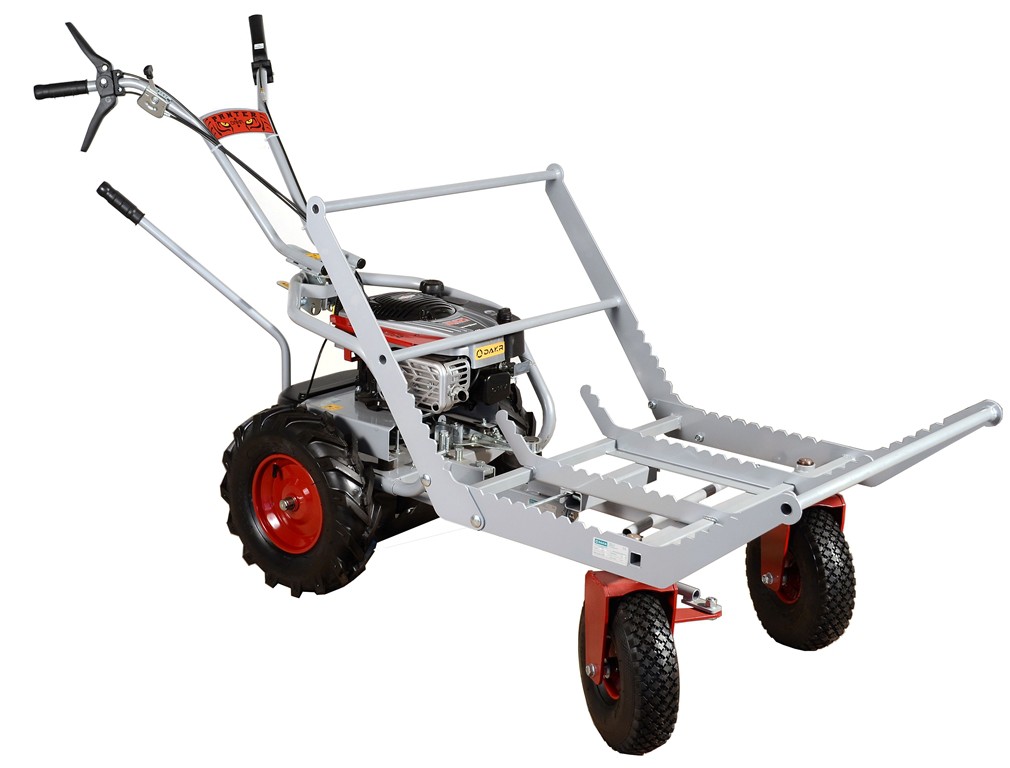

Steerable chassis for KOR220 cart

Steerable chassis for KOR220 cart

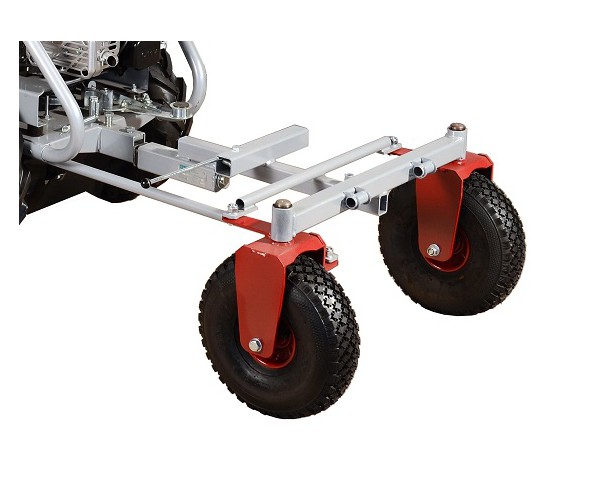

multipurpose steerable chassis is compatible with rigid body, yard-woods body and plastic crate body; steerable wheels; max. loading capacity 220 kg; compatibility with Panter driving units
More information
Order No.:01235.122

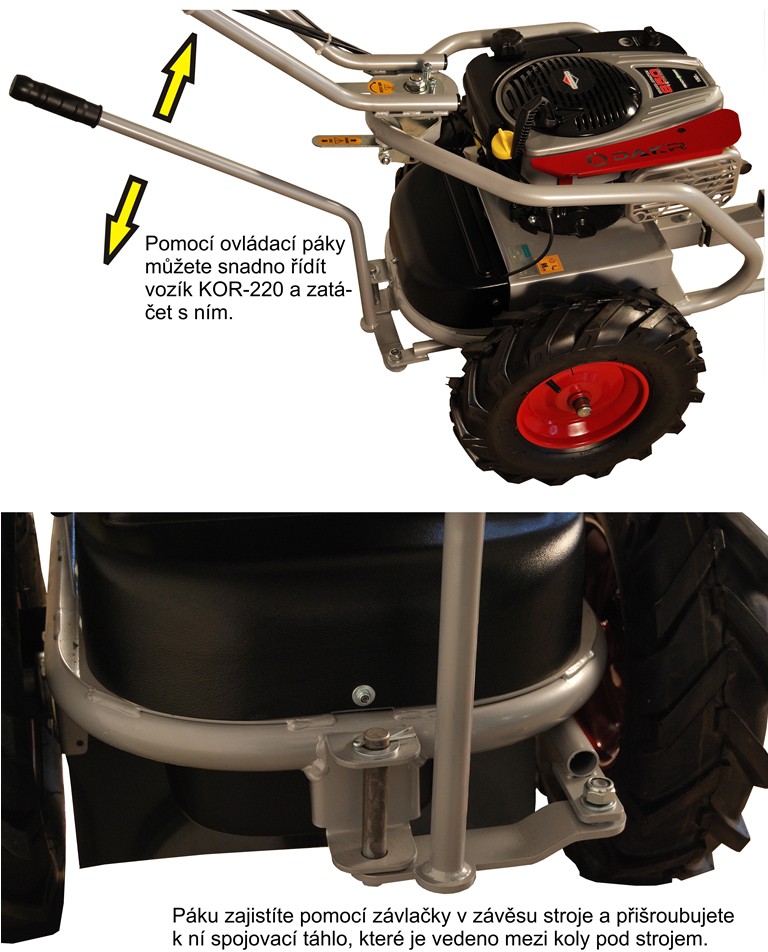

A helper that saves a lot of uncomfortable effort. You can load about 2-times more than on a standard wheelbarrow, effortlessly and without spine´s destruction you can carry the load to any place. The bodies are tipping but not to dump the load during transport you can lock the body. With respect to the load weight and for easier turning are the wheels steerable. The simple turning is secured by means of the control lever (Panter FD2, FD2H) or the handlebars (Panter FD3eco, FD3-500).

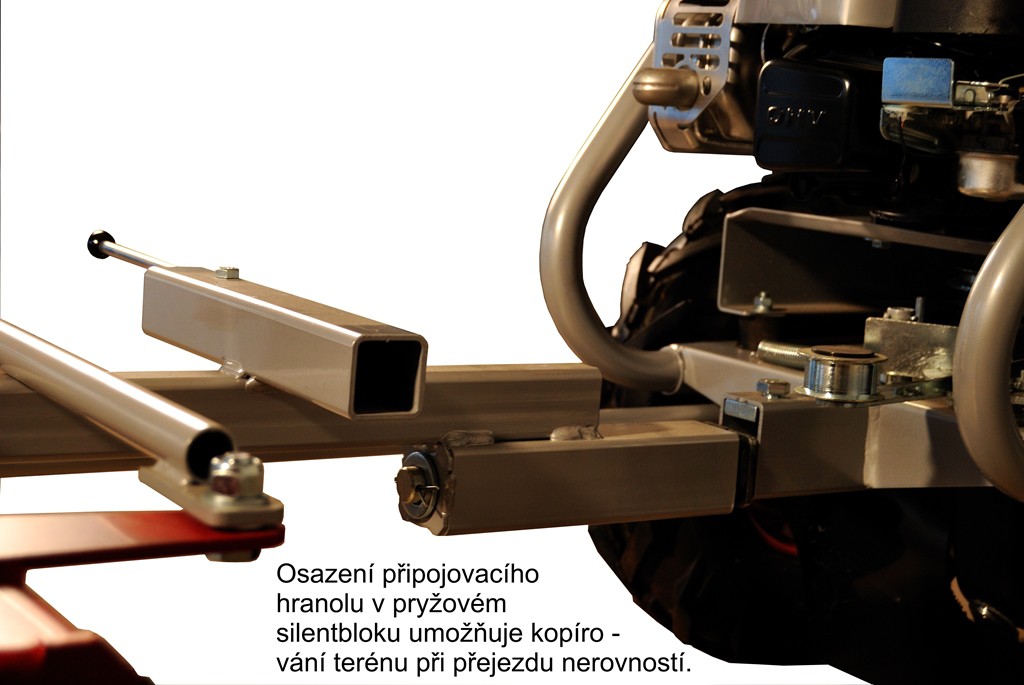

The great advantage of solution to fit the cart in front of the driving unit is that in bigger slopes the full cart is as load on driving unit´s wheels and it drives in slopes much easier than in case the cart is fitted behind the driving unit because the wheels are slipping.

Specifications:
Max. allowed capacity:220 kg
Body:removable, tilting with locking
Way of turnig:steerable wheels
Compatible driving units:FD2, FD2H, FD3eco, FD3-500











Compatible adaptors
  • Panter FD3-500
    Panter FD3-500

    modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD3eco
    Panter FD3eco

    modular Panter driving unit; max. output 13.2 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD2H
    Panter FD2H

    modular Panter driving unit; max. output 6.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD2
    Panter FD2

    modular Panter driving unit; max. output 6.5 HP, 3 travel speeds forward

  • Plastic crate body Panter
    Plastic crate body Panter

    compatibility with Panter driving units; maximum load capacity 220 kg
