OP114 Hay turner

OP114 Hay turner

adaptor for hay turning and raking compatible for Panter driving units; operating width 90 cm
More information
Order No.:01235.180
Max. operating width: 90 cm
The turner - raker is intended for tedding and raking the grass and hay. The machine is designed for hay turning and raking. It is capable to rake the hay from 2 weeks tall grass. The rotatable axle makes the machine turning easy but in case of need it is possible to lock the wheel for straight direction so it crosses demanding terrain better. Not to shake out of grass seeds we recommend to gear the slower travel speed with minimum engine´s revolutions.

OP114 hay turner specifications:
Options:seat for flat grounds and slight slopes
Max. output with FD2:3,960 m2/hour
Max. output with FD3 and FD5:9,000 m2/hour
Max. operating width:90 cm

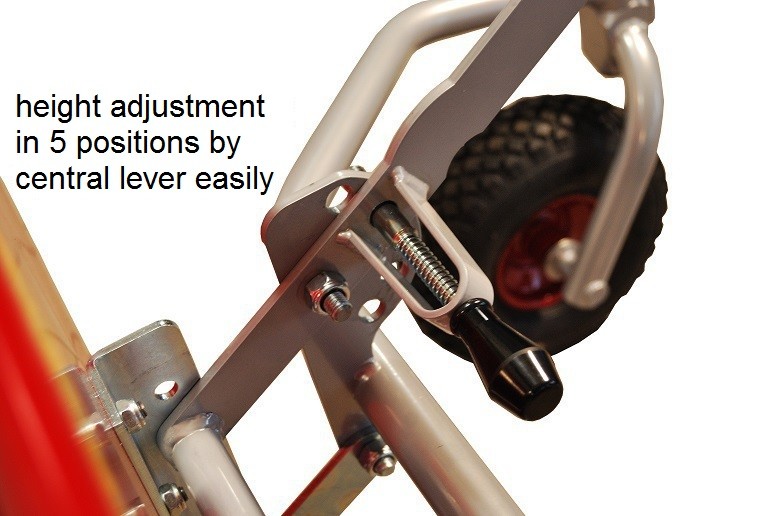

Height:central adjustment depending on the terrain
Recommended maintained area:unlimited
Compatible for driving units:FD2, FD2H, FD3eco, FD3-500, FD5



Compatible adaptors
  • Panter FD5
    Panter FD5

    four-wheel Panter FD5 machine; max. engine output 15.5 HP; iron cylinder sleeve; hydrostatic gearbox; forward and backward control of speed; axle with differential and locking; electric start; adaptor´s lifting from operator´s position; wide range of optional extras

  • Panter FD3-500
    Panter FD3-500

    modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD3eco
    Panter FD3eco

    modular Panter driving unit; max. output 13.2 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD2H
    Panter FD2H

    modular Panter driving unit; max. output 6.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD2
    Panter FD2

    modular Panter driving unit; max. output 6.5 HP, 3 travel speeds forward
