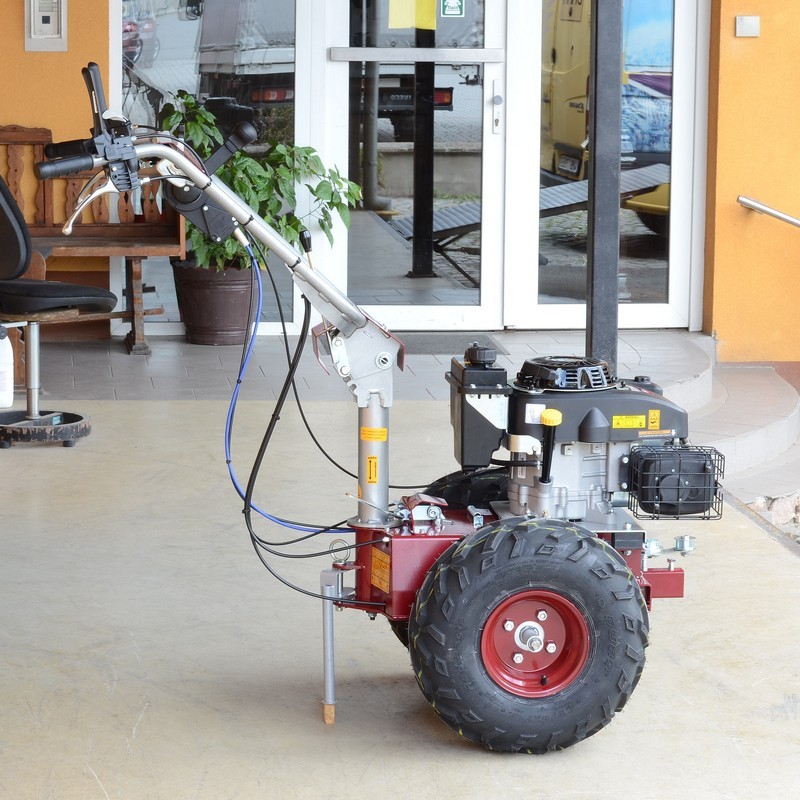

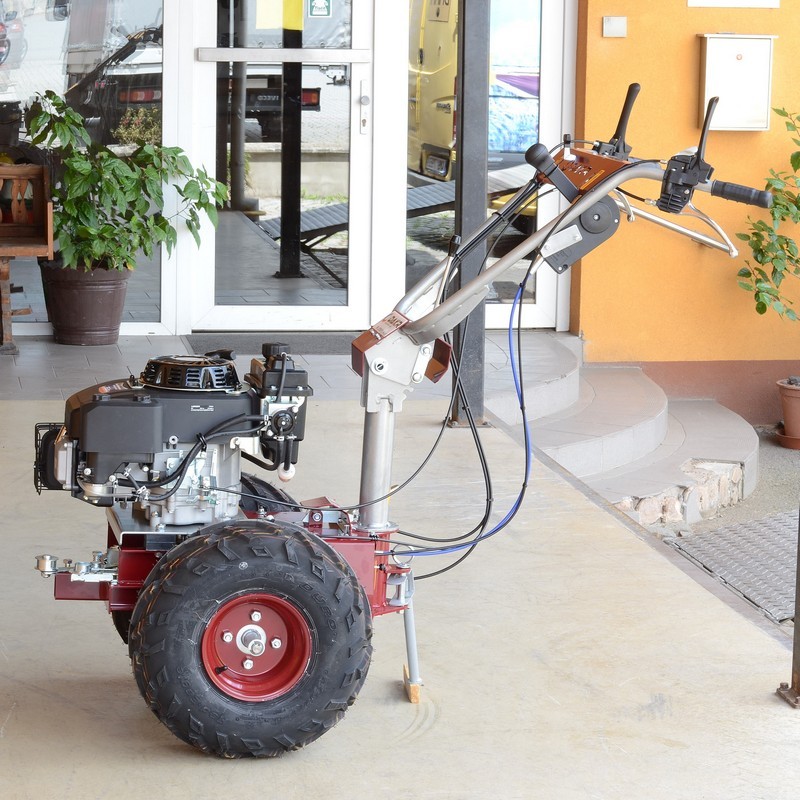

Panter FD3eco L352 driving unit
| Order No.: | 01236.023 |
| Engine: | Loncin 11 HP |
| Travel: | yes, single slide control of speed forward and backward |
| Travel: | yes, single slide control of speed forward and backward |
| Speeds: | forward 0÷8 km/hour, backward 0÷4 km/hour |
| Axletree: | lockable differential |
| Gearbox: | hydrostatic Tuff Torq K46 |
| Other equipment: | driving brake |
| Engine vibration attenuation: | 4 silent blocks |
| Handlebars: | height and side adjustable |
| Tyres: | big blown wheels 480 mm with V-shaped tread pattern |
| Wheels outer profile: | 76 cm (extendable to 94 cm) |
| Weight: | 118 kg |
| Engine: | 4-stroke Loncin OHV |
| Engine starting: | manual starter |
| Fuel: | gasoline Natural 95 |
| Engine capacity: | 352 cc |
| Cylinder: | cast iron sleeve |
| Engine working speed: | 3,200 rpm |
| Engine output at 3,670 rpm: | 11.0 HP/8.1 kW |
| Torque: | 21.1 Nm |
| Engine lubricaton: | spray |
| Slope accessibility: | safe slope accessibility guaranteed by the state testing institute 10°, the engine operates safely at a constant tilt of 20° |
MC70 Flail mower Panternarrower version of the flail mulcher, suitable for forestry; operating width 70 cm.
Vares IT 500 Profi Trailer - NOT FOR SALE SEPARATELY!loading area 1,470 x 1,090 mm; maximum load capacity 700 kg; compatibility with Panter driving units
Panter FD3 Steel wheelsThe wheels increase the possibility of using the machine on a slope and prevent the possibility of a defect.
Aerator VERTI Panteradaptor for aerating; compatibility with Panter driving units
MC100 Flail mower Panteradaptor for grass mulching; compatibility with Panter driving units
Everest Turbo spreadertowed spreader; hopper capacity 150 kg of salt; operating width 3-6 m; equipped with seat
Axle extension for Panter FD3 driving unitouter wheels profile extension from 760 mm to 940 mm; compatibility with Panter FD3eco and FD3-500 driving units
DV70 Branch crusher Panteradaptor for branch shredding; compatibility with Panter driving units
ROT Rotary cultivator Panteradaptor for soil loosening; compatibility with Panter driving units
SB 110 Sweeping brush Pantersnow removal; operating width 110 cm; collecting container and protection shield as option; compatibility with Panter driving unit
Vares HV 220/S Trailer - NOT FOR SALE SEPARATELY!loading area 1,240 x 950 mm; maximum load capacity 220 kg; compatibility with Panter driving units
Yard–Woods body for KOR 220 steerable cart chassisMaximum load capacity 220 kg
KOR220 Steerable chassis Pantermultipurpose steerable chassis is compatible with rigid body, yard-woods body and plastic crate body; steerable wheels; max. loading capacity 220 kg; compatibility with Panter driving units
RAP100 Blade Panteradaptor for snow removal compatible with Panter driving units; operating width 100 cm
RAP85 Blade Panteradaptor for snow removal compatible with Panter driving units; operating width 85 cm
SF70 Snow blower Panteradaptor for snow removal; operating width 69 cm; compatibility with Panter driving units
OP114 Hay turner Panteradaptor for hay turning and raking compatible for Panter driving units; operating width 90 cm
M70 Mulcher Panteradaptor compatible with Panter FD2 and FD2H driving units; operating width 71 cm
BPR Steerable seat Pantersteerable seat compatible with Panter FD3 driving units; controlled by handlebars; max. seat capacity 130 kg
BP Seat Panternon-steerable seat compatible for Panter driving units; max. seat capacity 100 kg
M121 Two-blade mulcher Panteradaptor compatible with Panter FD3 and FD5 driving units; operating width 121 cm
RZS121 Two-drum mower Panteradaptor compatible for Panter FD3 and FD5 driving units; operating width 121 cm
DZS125 Four-disc mower Panteradaptor compatible for Panter driving units, operating width 125 cm
RZS70K One-drum mower Panteradaptor compatible with Panter driving units; operating width 69 cm
Panter FD3-500modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
Panter FD3ecomodular Panter driving unit; max. output 13.2 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
