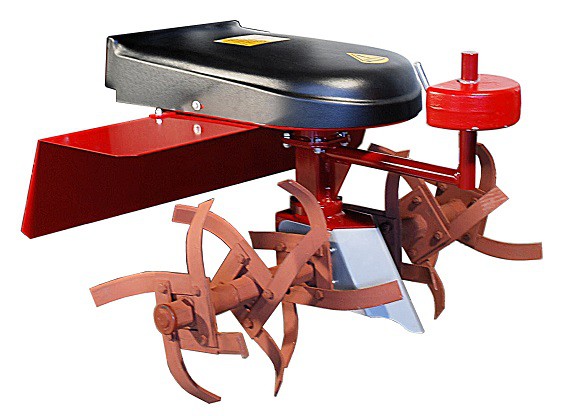

ROT Rotary cultivator
ROT Rotary cultivatorROT Rotary cultivatorROT Rotary cultivatorROT Rotary cultivator
ROT Rotary cultivator

ROT Rotary cultivator

adaptor for soil loosening; compatibility with Panter driving units
More information
Order No.:01235.130
Max. operating width: 80 cm
The rotavator is a great helper in spring as well as in autumn. At the beginning of the season, it prepares beds for planting and in autumn, it can be used for composting. Unlike the single purpose machines, the rotary cultivator is geared much more faster, its effectiveness is much higher and work much faster. It is used also by professional gardeners for the terrain levelling during the completion works in the gardens. The machine is equipped 5 kg weights and with reinforcement for FD2 and FD2H driving units. In case of processing into greater depths and in heavier soils we recommend adding another weight. The rotary cultivator comprises of 6 stars with 30 cm diameter and 80 cm stroke, after narrowing to 4 stars, the stroke is 54 cm. The adaptor´s transfer is in a ratio of 1:7.5 and the revolutions are transfered by V-belt.

ROT rotary cultivator specifications:
Max. operating width:80 cm
Rotavator´s torque:210 rpm
Compatible driving units:FD2, FD2H, FD3, FD3-500, FD5



ROT Rotary cultivatorROT Rotary cultivatorROT Rotary cultivatorROT Rotary cultivatorROT Rotary cultivatorROT Rotary cultivator
Compatible adaptors
  • Panter FD5
    Panter FD5

    four-wheel Panter FD5 machine; max. engine output 15.5 HP; iron cylinder sleeve; hydrostatic gearbox; forward and backward control of speed; axle with differential and locking; electric start; adaptor´s lifting from operator´s position; wide range of optional extras

  • Panter FD3-500
    Panter FD3-500

    modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD3eco
    Panter FD3eco

    modular Panter driving unit; max. output 13.2 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD2H
    Panter FD2H

    modular Panter driving unit; max. output 6.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD2
    Panter FD2

    modular Panter driving unit; max. output 6.5 HP, 3 travel speeds forward
