SF70 Snow blower

SF70 Snow blower

adaptor for snow removal; operating width 69 cm; compatibility with Panter driving units
More information
Order No.:01235.071
Max. operating width: 69 cm

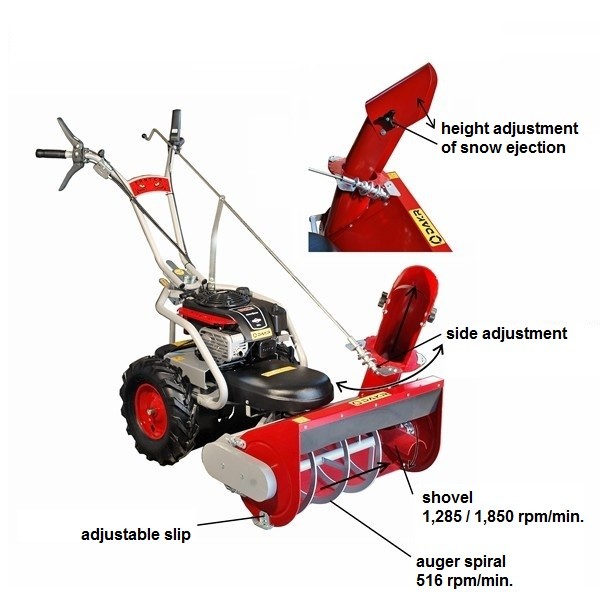

The adaptor with 69 cm operating width is intended for fresh snow removal but it copes with frozen snow too. The possibility to set 2 different revolutions of the blade´s speed makes our snow blower unique. When you need to clean fresh powder snow set the faster revolutions (1,850 RPM) to the snow blows as far as possible. While you set the slower revolutions (1,285 RPM) you can remove the heavy wet snow more effectively. Thanks to rotating chimney it is possible to influence the thrown snow direction (forward, aside). We recommend to use the SF70 snow blower in connection with our Panter FD2H, FD3 or FD5 driving units which are equipped with backward speed.

SF70 snow blower specifications:
Max. output with FD2:1,860 m2/hour
Max. output with FD3:3,036 m2/hour
Max. operating width:69 cm
Blade speed:at choice 1,285/1,850 rpm
Weight:39 kg
Recommended maintained area:unlimited
Compatible driving units:FD2, FD2H, FD3eco, FD3-500
