MC100 Flail mower

MC100 Flail mower

adaptor for grass mulching; compatibility with Panter driving units
More information
Order No.:01236.008
Max. operating width: 100 cm

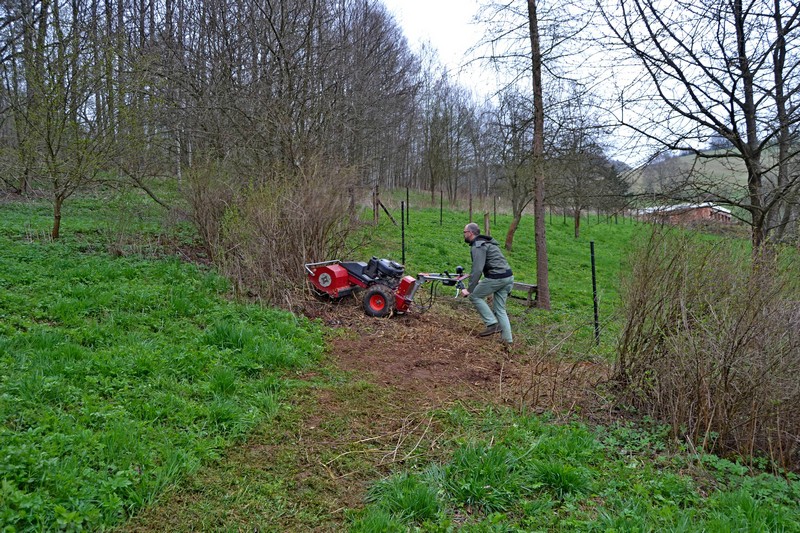

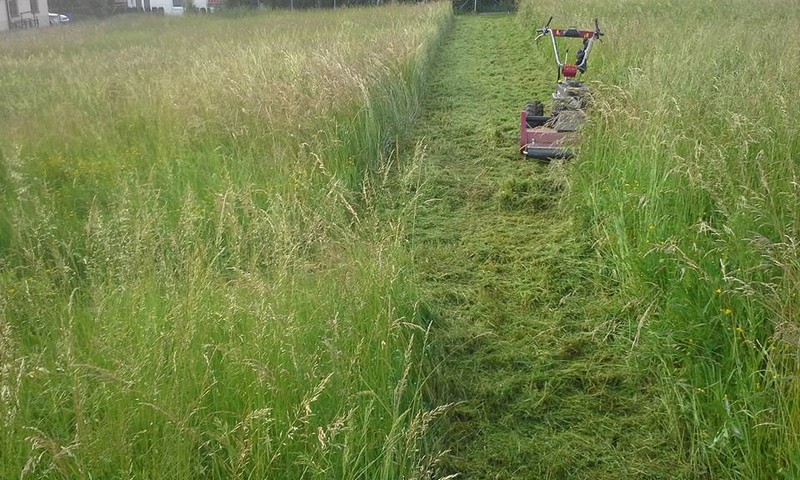

The MC100 mulcher is intended for the most demanding conditions. It is able to mulch the grass more than 1 meter higher. It resists much better in collision with stones or other obstacles than the other mowers and mulchers. It can cope with self-seeding shrubs. Despite the reduced danger of damage it is necessary to keep the safety regulations. The mowing equipment comprises of horizontal rotor with 36 oscillating special blades. The stubble height can be set within 3-12 cm by means of adjusting the travel roller. The MC100 mulching machine in connection with the Panter FD3 driving unit remains horizontally tilting so it copies the terrain unevenness and it is sufficiently stable even in the hilly terrain. The mowing device is covered in steel sheet metal, which minimizes the option of flying off stones, wood, and other objects which can occur in the mowing area.

Specifications:
Max. output with FD3:7,806 m2/hour
Max. operating width:100 cm
Cutting mechanism:36 swinging blades fixed on horizontal shaft
Cutting mechanism drive:conical gearbox and V-belt
Adaptor connection:enables the mulcher horizontally tilting and it copies the terrain better
Stubble height:3-12 cm
Weight:89 kg
Options:seat for lowlands and slight slopes
Recommended maintained area:unlimited
Compatible driving units:Panter FD3eco, FD3-500, FD5





Compatible adaptors
  • Panter FD5
    Panter FD5

    four-wheel Panter FD5 machine; max. engine output 15.5 HP; iron cylinder sleeve; hydrostatic gearbox; forward and backward control of speed; axle with differential and locking; electric start; adaptor´s lifting from operator´s position; wide range of optional extras

  • Panter FD3-500
    Panter FD3-500

    modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential

  • Panter FD3eco
    Panter FD3eco

    modular Panter driving unit; max. output 13.2 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
