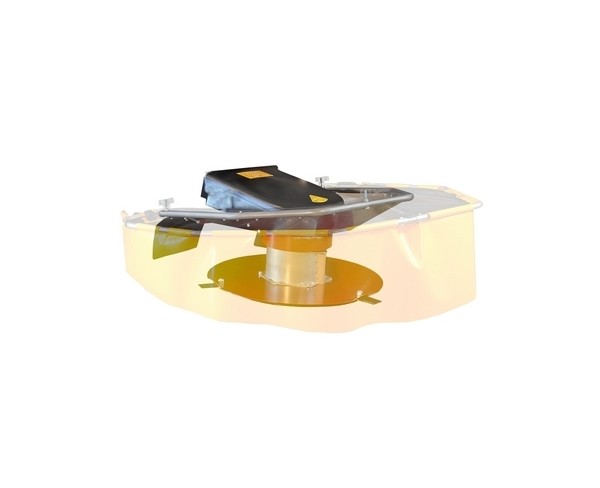

RZS70K One-drum mower adaptor

adaptor compatible with Panter driving units; operating width 69 cm

Order No.:	01235.321
Max. operating width:	69 cm

Information
Make a query
Video
Photogallery

The mower can mow low as well as very overgrown grass including not maintained areas with self-seeding shrubs. A steel mower´s disc is braced at the places where the blades are fasten. Underneath there is a steel pivot slider on the bearing which covers the upper disc up to 2/3 of its diameter. A standard protective cover is a component of the adaptor.

RZS70K one-drum mower specifications:

Max. output with FD2:	3,036 m²/hour
Max. operating width:	69 cm
Disc:	3 blades with pivoting fender apron with ball bearing
Stubble height:	3.5 cm in average
Weight:	20 kg
Options:	seat for flat grounds and slight slopes
Recommended maintained area:	unlimited
Compatible driving units:	FD2, FD2H, FD3eco, FD3-500, FD5
