Tekton L196 One-drum mower

Tekton L196 One-drum mower

self-propelled modular drum mower; operating width 60 cm; Loncin engine with max. output 6.1 HP; 2 forward speeds; split axle with single locking and differential function; complete cover included in the machine price
More information
Order No.:01233.315
Max. output: 1,800 m2/hour
Max. operating width: 60 cm
Engine: Loncin 6.1 HP
Engine capacity: 196 cc
Travel: yes, 2 speeds forward

A common feature of TEKTONs is the modular chassis, to which you can attach 4 types of working adaptors, as well as a two-speed gearbox. They differ from each other in engine and type of mowing mechanism. All models are equipped with a travel of course.

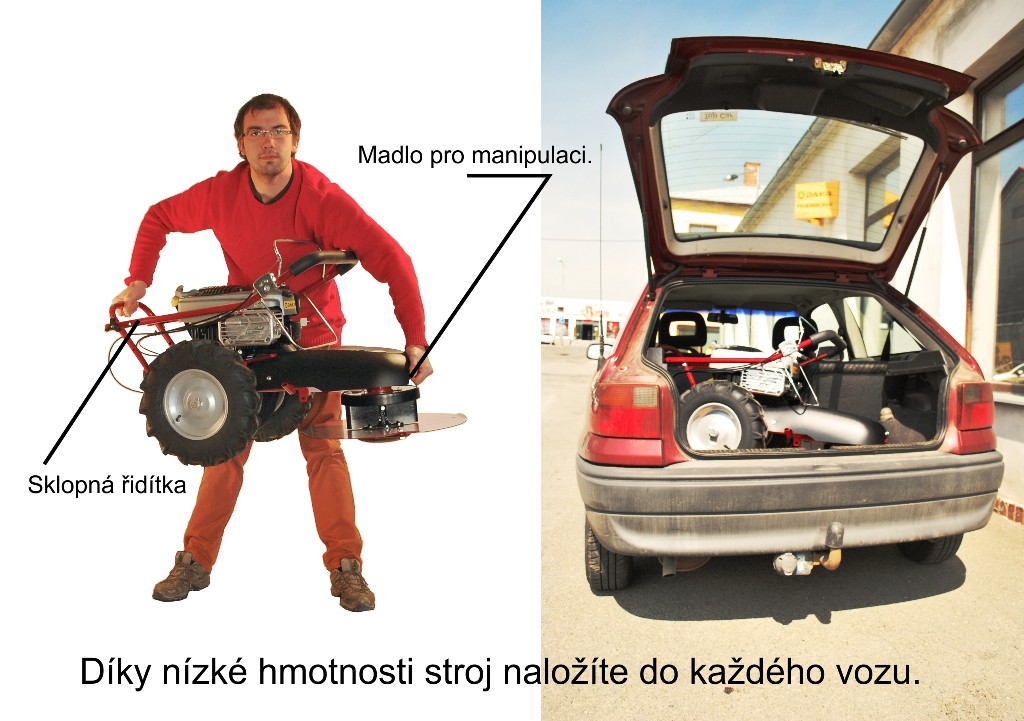

This mower is powered by a high quality Loncin LC1P70F-3 engine with automatic choke. With a light weight of 51 kg and easy operation, it will excel especially where there are many trees, curbs, flower beds, etc. The main advantage of the Tekton is its original design combined with its low weight and high hourly output. For maintenance around the cottage, this is the ideal machine.

The mowing cover complies with the latest safety standard CSN EN 12733, according to which a solid barrier must be 20 cm away from the blade path and the possibility of stones being thrown to all sides must be significantly reduced. The cover is made of the two parts, the upper base cover is made of stainless steel. This cover is in the price included.

The machine has a split axle that keeps the mower in the cutting direction when the drive is engaged and does not change direction on uneven ground, but allows easy turning.

The cutting disc is covered from below by a gliding plate with a smaller diameter than the cutting disc. This solution is advantageous, for example, for lying grass.


Specifications:

Max. operating width:60 cm
Travel axle:self-locking divided axle (replacing the differential with locking)
Travel speed:2 forward speeds (2.3 km/h; 3.0 km/h)

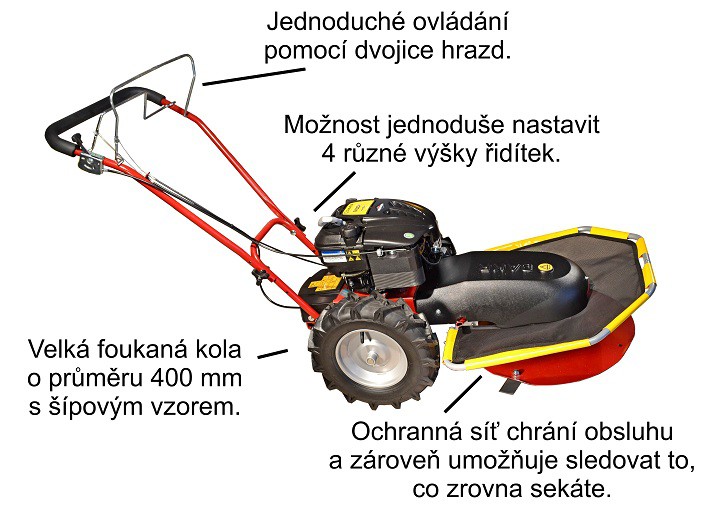

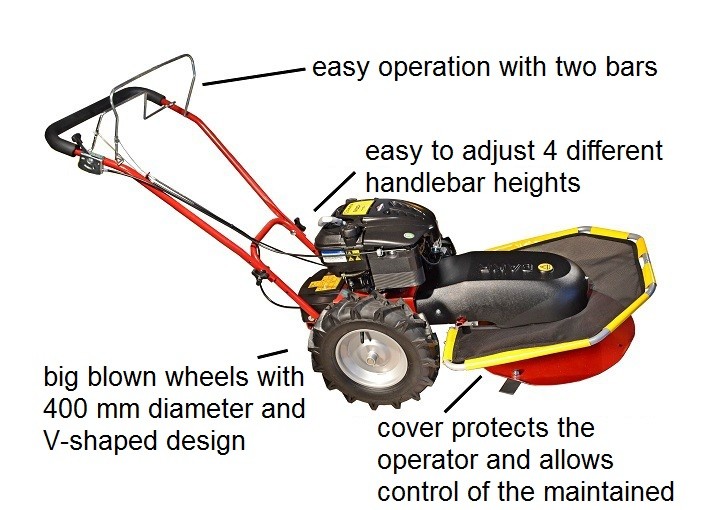

Tyres:big blown wheels 400 mm with V-shaped tread pattern

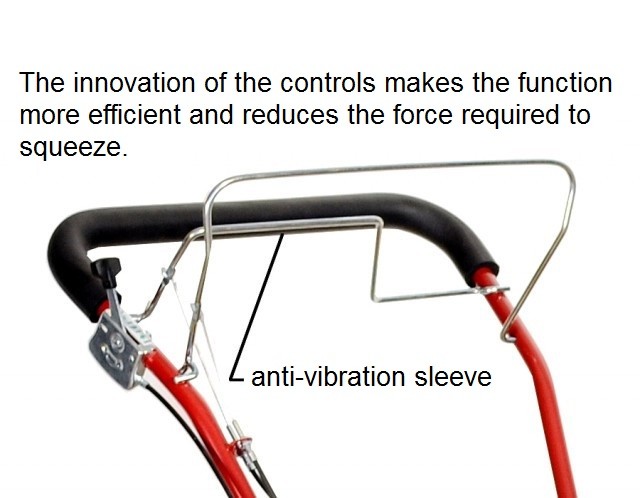

Handles:adjustable in 4 levels, softened handgrip
Modular unit:yes, (4 adaptors and optional extras)
Stubble height:3.5 cm in average

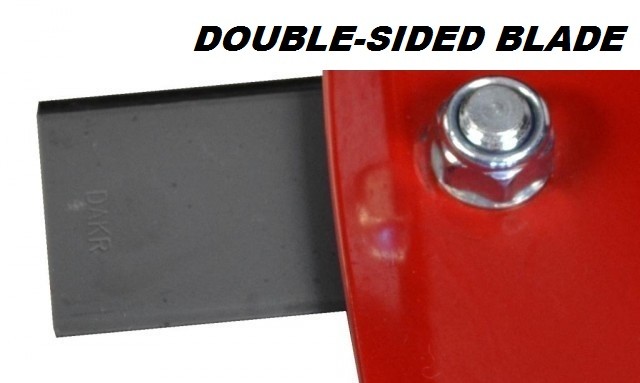

Disc:disc with a pivot slider, 2 or 4 blades optional, protecting frame with upper net prevents from the undesirable bits spreading
Engine:4-stroke Loncin LC1P70F-3
Fuel:gasoline Natural 95
Engine capacity:196 cc
Cylinder:aluminium
Engine working speed:3,060 rpm
Total max. engine output:6.1 HP/4.5 kW
Torque at 2.500 rpm:12.0 Nm
Engine lubrication:spray
Engine start:easy starting with automatic choke
Disc covering:stainless steel cover (in conformity with Safety Standards)
Weight:51 kg
Recommended maintained area:up to 10.000 m2
