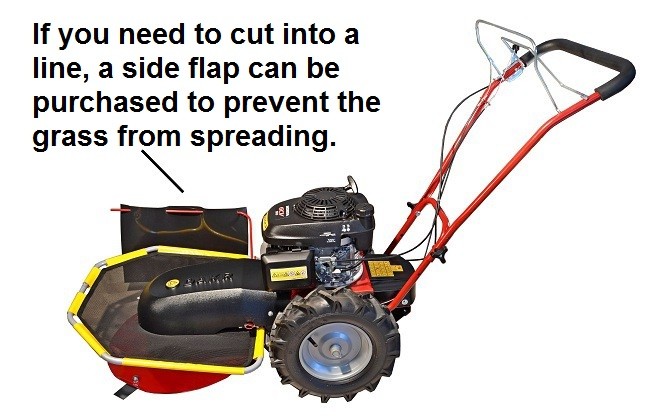

Triton GCV 200 One-drum mower var. 2
| Order No.: | 01233.202 |
| Max. output: | 1,800 m2/hour |
| Max. operating width: | 60 cm |
| Engine: | Honda 6.5 HP |
| Engine capacity: | 201 cc |
| Travel: | yes, 2 speeds forward |

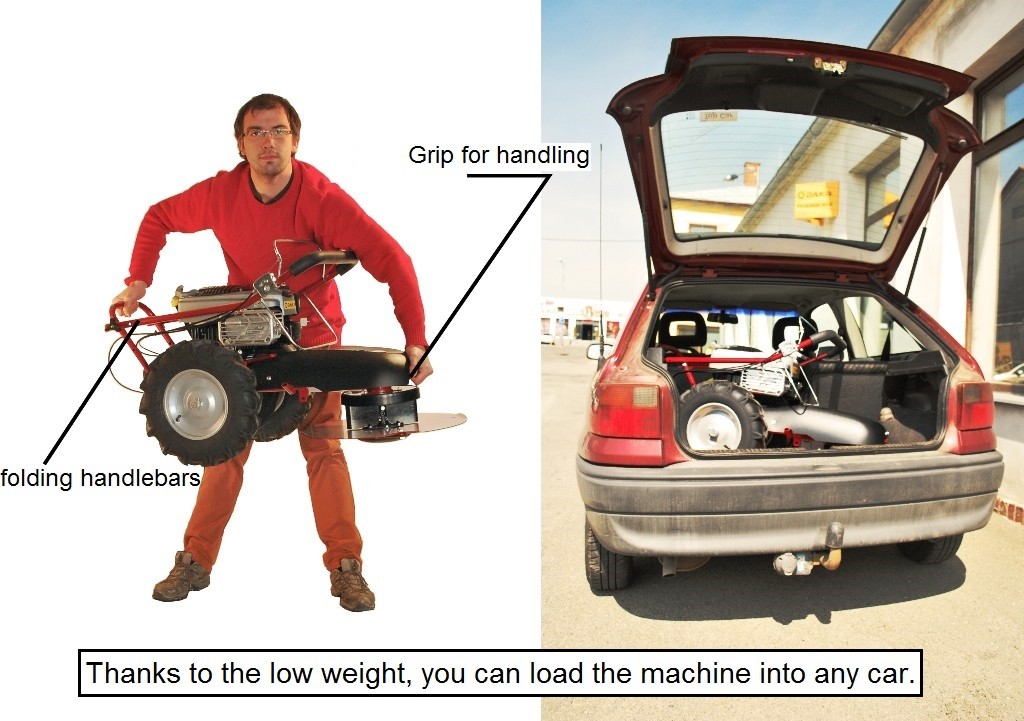

This modular kit allows to gear 2 forward speeds (2.3 or 3.0 km/hour). You can attach 4 working adaptors (2 types of mower, a mulcher or a snow blade). The machine has big off-road V-shaped wheels and adjustable handles with anti vibrafon sleeve. The handlebars are collapsible which you appreciate during machine´s transport. The HONDA GCVx engine is distinguished by its quiet running, low vibrations and the bigger capacity which is 201 cc. The engine has an automatic choke. The Triton machines have very low vibrations thanks to a shaft´s conical connection to the cutting adaptors. The adaptors are driven by a Roflex V-belt with Kevlar fibers and a steel pulley. The machine is equipped with an industrial brake shoe to stop the cutting mechanism. The recommended maintained area is up to 10,000 m2.
The mower is equipped with a stainless steel cover which meets the latest safety standards when the half of the disc has to be covered by a solid casing within the blades.
Triton kit is a machine which can be variable used as a mower, a mulcher or a snow blade.
Specifications:
| Max. operating width: | 60 cm |
| Travel axle: | self-locking divided axle (it substitutes the differential with locking) |
| Travel speed: | 2 speeds (2.3 km/hour; 3.0 km/hour) |

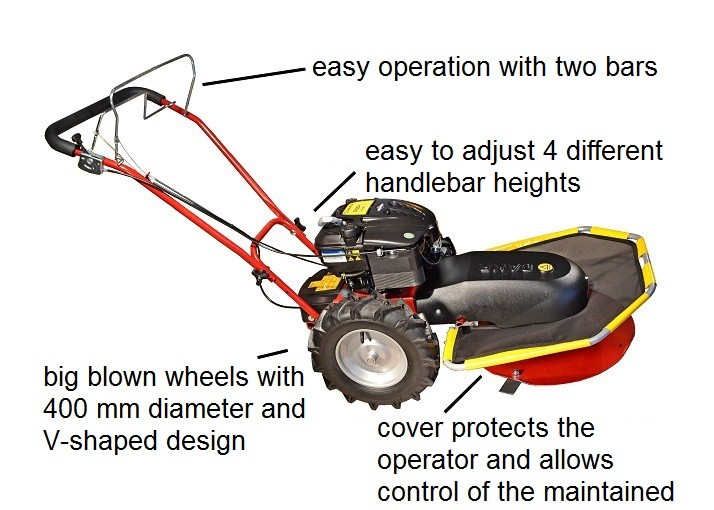

| Tires: | big blown wheels 400 mm with V-shaped tread pattern |
| Handlebars: | adjustable in 4 heights, softened rubber grip |
| Modular unit: | yes (4 working adaptors and some optional extras) |
| Stubble height: | 3.5 cm in average |

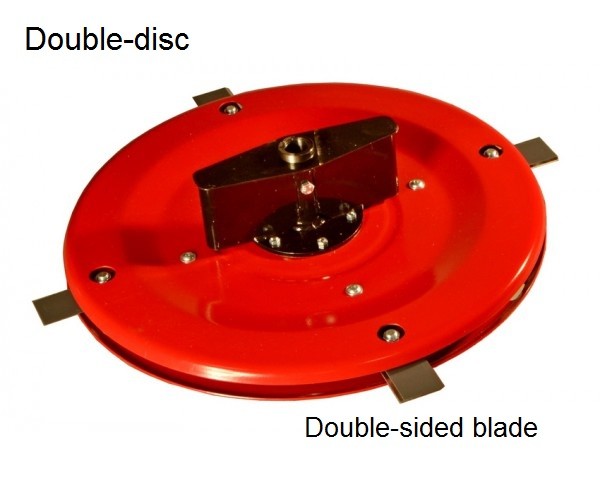

| Mowing mechanism: | double disc (disc fully covered with a slider) with 4 blades, protecting frame with upper net prevents from the undesirable bits spreading |
| Engine: | 4-stroke Honda GCVx 200 |
| Fuel: | gasoline Natural 95 |
| Engine capacity: | 201 cc |
| Cylinder: | aluminium |
| Torque at 2,500 rpm: | 12.7 Nm |
| Engine lubrication: | spray |
| Engine start: | automatic choke |
| Mowing mechanism covering: | stainless steel cover (in conformity with Safety Standards) |
| Weight: | 52 kg |
| Recommended maintained area: | up to 10,000 m2 |
