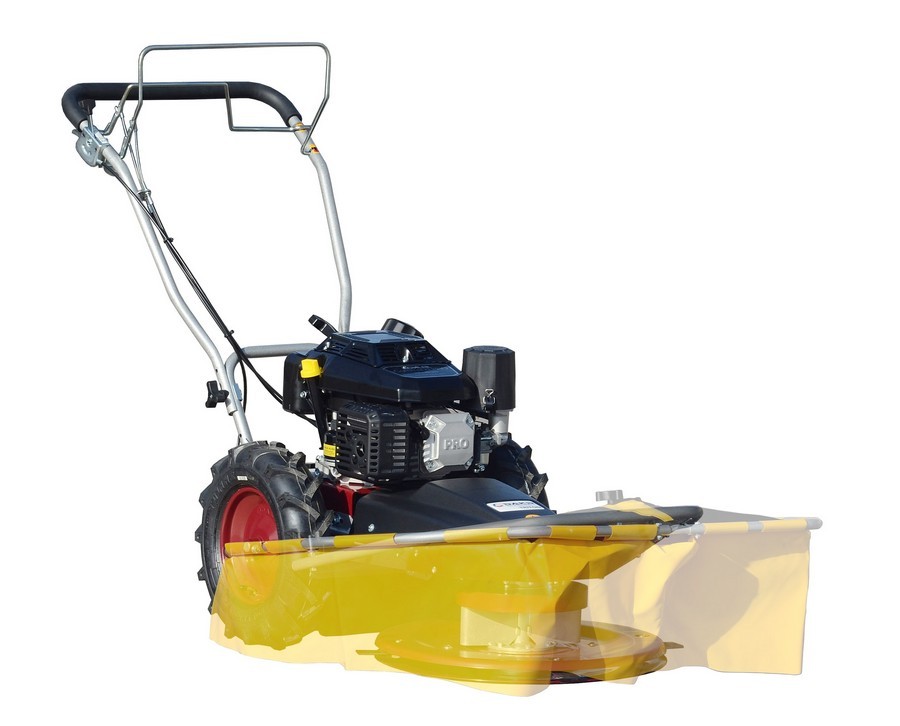

Triton KOHLER One-drum mower var. 2
| Order No.: | 01233.346 |
| Max. output: | 1,800 m2/hour |
| Max. operating width: | 60 cm |
| Engine: | KOHLER Command PRO CV224 |
| Engine capacity: | 224 cc |
| Travel: | yes, 2 speeds forward |

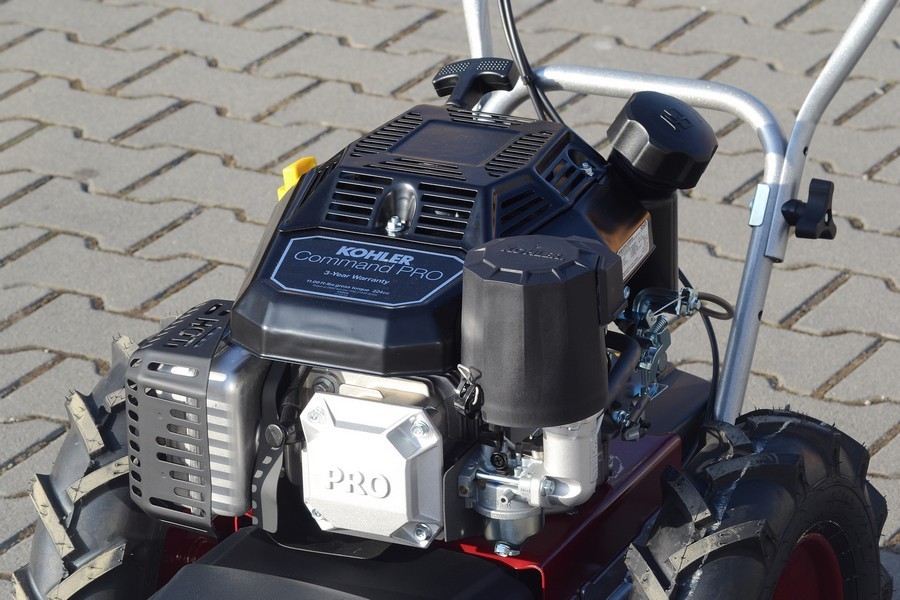

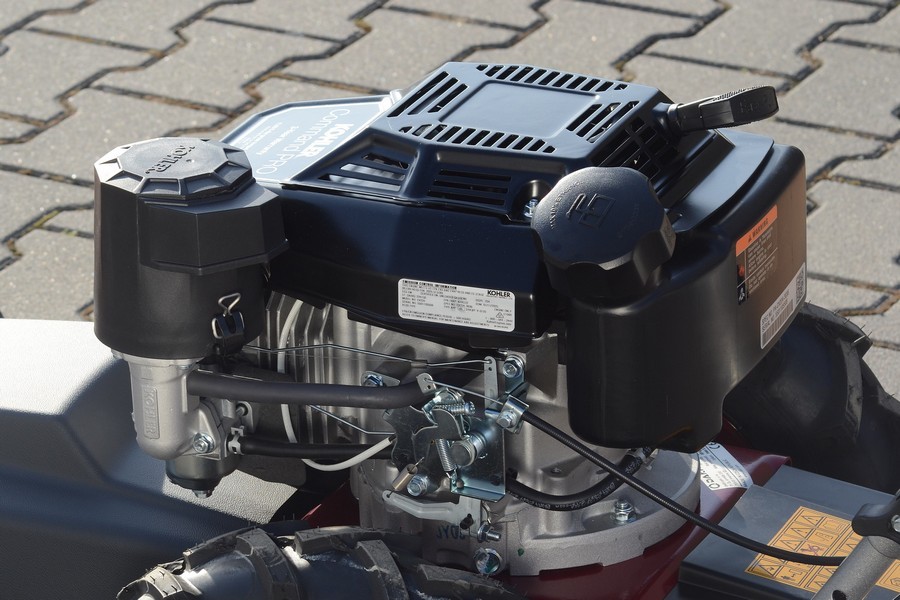

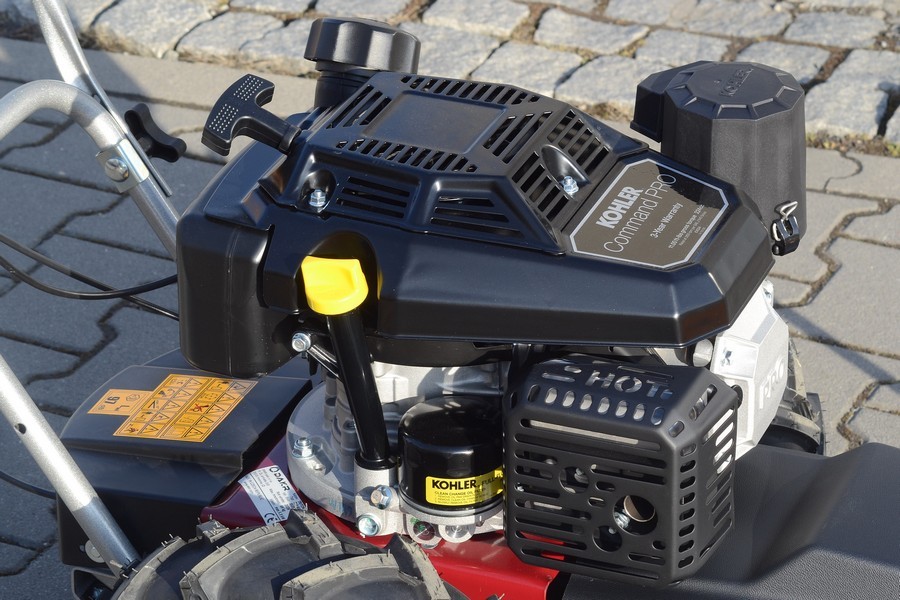

This modular kit allows to gear 2 forward speeds (2.3 or 3.0 km/hour). You can attach 4 working adaptors (2 types of mower, a mulcher or a snow blade). The machine has big off-road V-shaped wheels and adjustable handles with anti vibrafon sleeve. The handlebars are collapsible which you appreciate during machine´s transport. This is the most powerful model in our lineup, equipped with a KOHLER Command PRO CV224 engine with a displacement of 224 cc, featuring a professional construction with a cast-iron cylinder liner and pressure lubrication. The cast-iron cylinder liners add durability and engine protection. The Triton machines have very low vibrations thanks to a shaft´s conical connection to the cutting adaptors. The adaptors are driven by a Roflex V-belt with Kevlar fibers and a steel pulley. The machine is equipped with an industrial brake shoe to stop the cutting mechanism. There is no limit on the recommended mowing area.
The protective cover complies with the latest safety standard, CSN EN 12733, which requires that a solid barrier be positioned 20 cm from the blade path and significantly reduces the risk of stones flying off in all directions. The guard consists of two parts; the upper base guard is made of stainless steel. This guard is included in the base price of the machine.
The mower is not just for one purpose; you can purchase a simple disc suitable for flattened grass, a mulching adaptor and a snow blade.
Specifications:
| Max. operating width: | 60 cm |
| Travel axle: | self-locking divided axle (it substitutes the differential with locking) |
| Travel speed: | 2 speeds (2.3 km/hour; 3.0 km/hour) |
| Tires: | big blown wheels 400 mm with V-shaped tread pattern |
| Handlebars: | adjustable in 4 heights, softened rubber grip |
| Modular unit: | yes (4 working adaptors and some optional extras) |
| Stubble height: | 3.5 cm in average |
| Mowing mechanism: | double disc (disc fully covered with a slider) with 4 blades, protecting frame with upper net prevents from the undesirable bits spreading |
| Engine: | 4-stroke KOHLER Command PRO CV224 |
| Fuel: | gasoline Natural 95 |
| Engine capacity: | 224 cc |
| Cylinder: | cast iron liner |
| Torque at 2,600 rpm: | 14.9 Nm |
| Engine lubrication: | dual - full pressure & splash |
| Engine start: | effortless start thanks to Easy-Pull™ technology |
| Others: | oil pump, oil filter, oil capacity 0.59 l, easy pours and less spilling with Accu-Fill® fuel tank's 45% larger angled fuel neck |
| Mowing mechanism covering: | stainless steel cover (in conformity with Safety Standards) |
| Weight: | kg |
| Recommended maintained area: | no limit |
