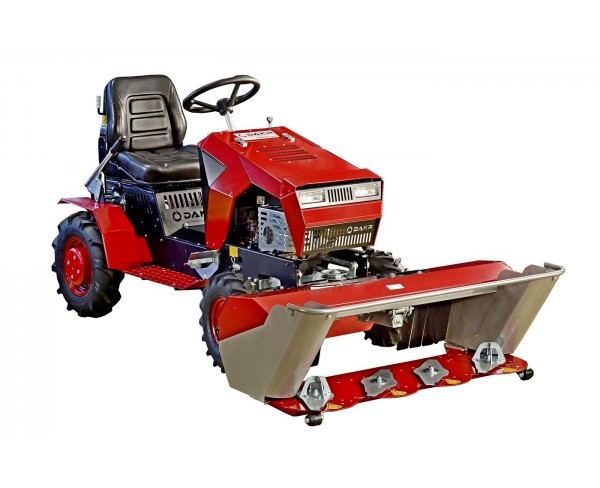

Panter FD5 driving unit with DZS125 four-disc mower

Panter FD5 driving unit with DZS125 four-disc mower

four-wheel Panter FD5 machine and DZS125 four-disc mower; wide range of optional extras
More information
Order No.:FD5 + DZS125
The Panter FD5 is a good choice in case you need a powerful machine which mows as well as ploughs. You can sit on the machine during operation which makes it much comfortable in compare with walk behind machines. The Panter FD5 is powered by 4-stroke Briggs&Stratton Powerbuilt Series 4145 engine with 15.5 HP output. There is a hydrostatic gearbox which enables single slide control of speed within 0-10 km/hour forward as well backward.

The DZS 125 mowing system is unique and DAKR has copyrighted it with European Industrial Design and Utility Models. This mower is suitable, for example, for those who dry hay. The discs do not left a windrow but lay it very regularly over the entire mowed width. Therefore, there is no need to rake the grass after mowing. The discs are driven by a chain which is in the oil bath underneath. The drive from the engine to the mower is by a V-belt which protects the crankshaft of the engine but also the other expensive parts of the driving unit from the strokes caused by the mower hitting a pipe, stones or other solid obstacles. This protection is further strengthened by shear pins on the each mower discs.

Thanks to its compact size, high stability and minimal demands on maintenance is the Panter FD5 designated for wide range of users. Its easy control will be appreciate during use in the gardens and vineyard, for maintenance of green lands or in municipal sector. The Panter FD5 is compatible for plough, harrows, lifting ploughshare, trailer as well as the adaptors which we manufacture for our Panter kit such as two-drum mower, four-disc mower, belt haymaker, flail mower, sweeping brush etc. The advantage of this machine is the possibility to connect our Panter adaptors as well as the tools for the one-axle tractor (adjustment body, plough, blade, harrows, aerator).

Operating width:125 cm
Optional functions:drum mowing
hay turning and raking, aerating
flail and blade mulching
snow blowing, removing, sweeping
soil ploughing, harrowing, loosening, aerating and potato lifting
load transporting, salt and artificial fertilizer spreading
Engine:Briggs&Stratton 4145 OHV, air-cooled one-cylinder
Cylinder:cast iron sleeve, capacity 500 cc
Engine start:electro-starter and manual reserve starter
Gearbox:hydrostatic TuffTorq K62 with a single slide control of speed
0÷10 km/hour forward and backward
reinforced half-axle with diameter 25.4 mm
Gearbox cooling:own system with an additional cooler protected by utility design, oil temperature indicator placed on the console
Axletree:rear axle driven by a differential, locking and brake
Tyres:rear - 5.00x10 MITAS (made in Czech republic)
front - 4.00x8 MITAS (made in Czech republic)
Seat:comfortable industrial seat with an adjustable suspension
in 3 levels, longitudinal setting and option of backrest inclination setting
Tank and fuel:tank capacity 8 litres, fuel Natural 95 petrol
Machine weight:ca. 250 kg in standard design
Slope inclination:safety slope inclination is 10° guaranteed by the Government testing laboratory
engine works during permanent 20° slope inclination.
Equipment included in the price:Panter FD5 driving unit     Order No. 01237.000
DZS 125 four-disc mower adaptor     Order No. 01236.015
towing hitch for a trailer connection
front carrier for Panter adaptors connection     Order No. 01237.010
carriers control     Order No. 01237.020
electronic safety device
parking brake
12V plug
Optional equipment
not included in the price:
rear carrier for connection of rear tools such as adjustment body, ploughshares, harrow etc.
extra weight for wheels 2x13 kg
extra weight for rear hitch



Compatible adaptors
  • Aerator VERTI Panter
    Aerator VERTI Panter

    adaptor for aerating; compatibility with Panter driving units

  • Potato lifting tool
    Potato lifting tool

    It is compatible with Panter FD5 driving unit. For the connection it is necessary to use the NT-3 adjustment body.

  • Vares TR 220S trailer
    Vares TR 220S trailer

    loading area 1,300 x 1,000 mm; maximum load capacity 400 kg; compatibility with Panter FD5 driving unit

  • Double-sided plough
    Double-sided plough

    in connection with Panter FD5 driving unit is designed for soil ploughing; it is connected by the NT-3 adjustment body which serves as well for the plough´s setting

  • One-sided plough
    One-sided plough

    in connection with Panter FD5 driving unit is designed for soil ploughing; it is connected by the NT-3 adjustment body which serves as well for the plough´s setting

  • Adjustment body
    Adjustment body

    is used to clamp the tool such as plough, harrows, lifting blade to the hinge of the Panter FD5 driving unit

  • VD 400 trailer
    VD 400 trailer

    solid, durable, dump trailer with stainless steel body and wide wheels

  • Weight on FD5 hitch
    Weight on FD5 hitch

    set containing 3 steel plates and their holder in total weight 25 kg to increase the machine´s traction

  • Weights for FD5 wheels
    Weights for FD5 wheels

    set containing 2 steel weights and assembling elements in total weight 25 kg to increase machine´s traction

  • Hiller for FD5
    Hiller for FD5

    hiller compatible with Panter FD5 driving unit

  • BR122 Harrows
    BR122 Harrows

    tool for breaking up and smoothing out the surface of the soil, moss removal etc.; compatibility with Panter FD5 driving unit

  • Towing ball for FD5
    Towing ball for FD5

    ISO 50 trailer hitch with ball

  • ZN1 - Rear carrier for FD5
    ZN1 - Rear carrier for FD5

    it is used for ploughing, potato lifting, harrows connection etc.

  • MC100 Flail mower Panter
    MC100 Flail mower Panter

    adaptor for grass mulching; compatibility with Panter driving units

  • ROT Rotary cultivator Panter
    ROT Rotary cultivator Panter

    adaptor for soil loosening; compatibility with Panter driving units

  • SB 110 Sweeping brush Panter
    SB 110 Sweeping brush Panter

    snow removal; operating width 110 cm; collecting container and protection shield as option; compatibility with Panter driving unit

  • RAP100 Blade Panter
    RAP100 Blade Panter

    adaptor for snow removal compatible with Panter driving units; operating width 100 cm

  • SF70 Snow blower Panter
    SF70 Snow blower Panter

    adaptor for snow removal; operating width 69 cm; compatibility with Panter driving units

  • OP114 Hay turner Panter
    OP114 Hay turner Panter

    adaptor for hay turning and raking compatible for Panter driving units; operating width 90 cm

  • M70 Mulcher Panter
    M70 Mulcher Panter

    adaptor compatible with Panter FD2 and FD2H driving units; operating width 71 cm

  • RZS121 Two-drum mower Panter
    RZS121 Two-drum mower Panter

    adaptor compatible for Panter FD3 and FD5 driving units; operating width 121 cm
