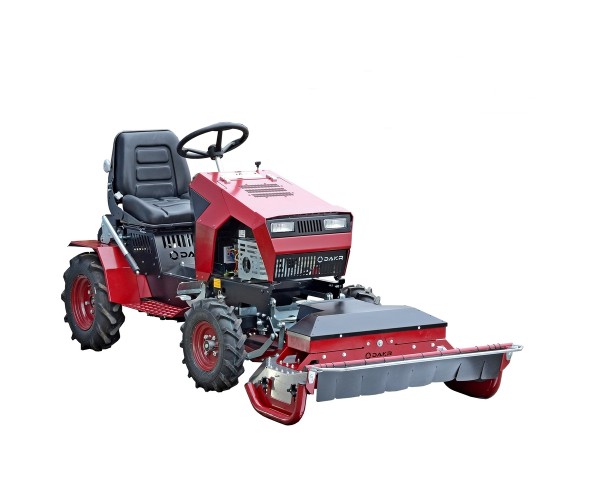

Panter FD5 driving unit with M91 Mulcher

Panter FD5 driving unit with M91 Mulcher

four-wheel Panter FD5 machine with M91 mulcher and wide range of optional extras
More information
Order No.:FD5 + M91
Max. operating width: 91 cm
Engine: Briggs&Stratton 15.5 HP
Travel: yes, 0-9 km/h forward and backward

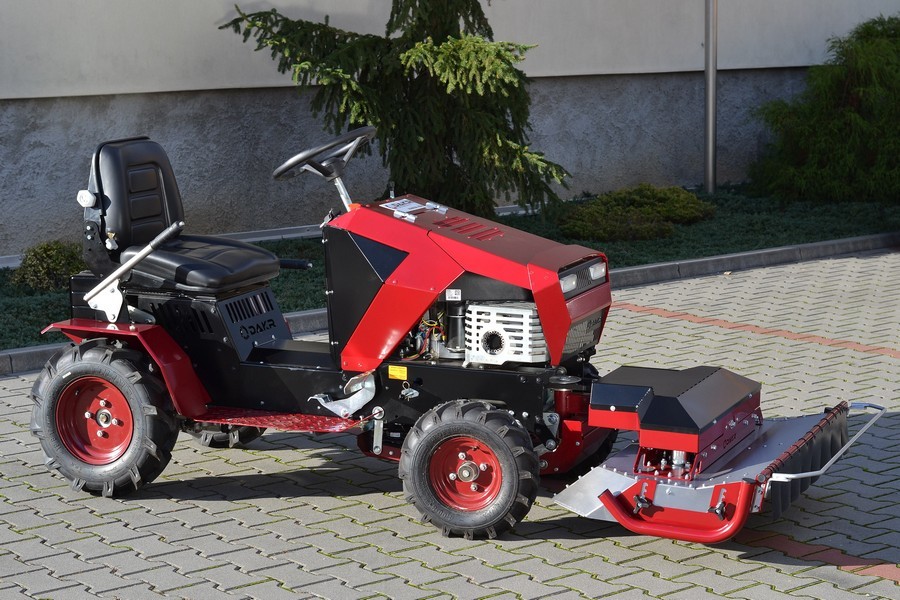

With the Panter FD5 four-wheel tractor and the lightweight M91 front-mounted mulcher, you'll appreciate the comfort of the machine as you ride it. The cutting device excels in excellent handling on sloping terrain, when changing direction, etc.
The Panter FD5 is a good choice in case you need a powerful machine for mowing and ploughing as well. You can sit on the machine during operation which makes it much comfortable in compare with walk behind machines. The Panter FD5 is powered by the 4-stroke Briggs&Stratton Powerbuilt Series 4145 engine with 15.5 HP output. There is a hydrostatic gearbox which enables single slide control of speed within 0-9 km/hour forward and backward.
Thanks to its compact size, high stability and minimal demands on maintenance is the Panter FD5 designated for wide range of users. The simple way of control will be appreciate while working in the gardens and vineyards, for maintenance of the green lands or in the municipal sector. The Panter FD5 is compatible with a plough, harrows, a lifting ploughshare, a trailer as well as with the adaptors which we manufacture for our Panter kit (a two-drum mower, a four-disc mower, a belt haymaker, a flail mower, a sweeping brush etc.).
The advantage of this machine is just the compatibility of our Panter adaptors and the tools for the one-axle tractor too.
Optional functions:drum and disc mowing
hay turning and raking, aerating
flail and blade mulching
snow blowing, removing, sweeping
soil ploughing, harrowing, loosening, aerating and potato lifting
load transporting, salt and artificial fertilizer spreading
Engine:Briggs&Stratton 4145 OHV, air-cooled one-cylinder
Cylinder:cast iron sleeve, capacity 500 cc
Engine start:electro-starter and manual reserve starter
Gearbox:hydrostatic TuffTorq K62 with a single slide control of speed
0÷9 km/hour forward and backward
reinforced half-axle with diameter 25.4 mm
Gearbox cooling:own system with an additional cooler protected by utility design, oil temperature indicator placed on the console
Axletree:rear axle driven by a differential, locking and brake
Tyres:rear - 5.00x10
front - 4.00x8
Seat:comfortable industrial seat with an adjustable suspension
in 3 levels, longitudinal setting and option of backrest inclination setting
Tank and fuel:tank capacity 8 litres, fuel Natural 95 petrol
Machine weight:ca. 305 kg in standard design
Slope inclination:safety slope inclination is 10° guaranteed by the Government testing laboratory
the engine works during permanent 20° slope inclination
Equipment included in the price:Panter FD5 driving unit     order No. 01237.000
M91 mulcher adaptor       order No. 01236.026
towing hitch for a trailer connection
front carrier for Panter adaptors connection     order No. 01237.010
carriers control     order No. 01237.020
electronic safety device
parking brake
12V plug
Optional equipment
not included in the price:
rear carrier for connection of rear tools such as adjustment body, ploughshares, harrow etc.
extra weight for wheels 2x13 kg
extra weight for rear hitch


Compatible adaptors
