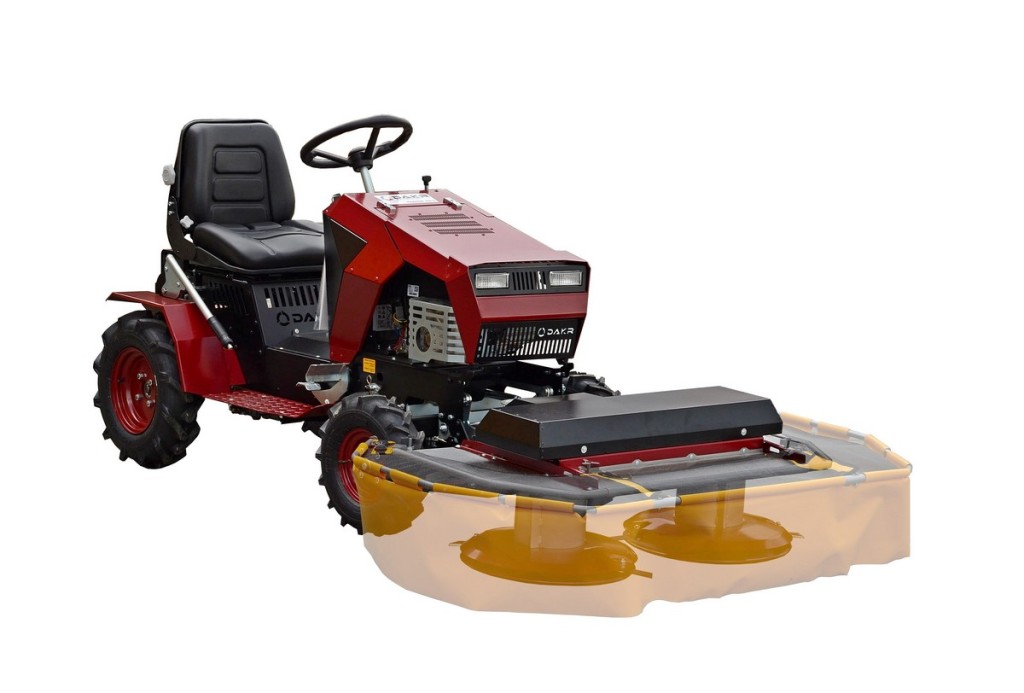

Panter FD5 driving unit with RZS121 two-drum mower
| Order No.: | FD5 + RZS121 |
| Max. operating width: | 121 cm |
| Engine: | Briggs&Stratton 15.5 HP |
| Engine capacity: | 500 cc |
| Travel: | yes, 0-9 km/h forward and backward |
Panter FD5 + RZS121 – powerful and universal helper for year-round use
Looking for a machine that not only mows, but also ploughs, pulls, mulches or sweeps? The Panter FD5 is a four-wheel hydrostatic-drive tool carrierBriggs&Stratton Powerbuilt Series 4145 engine. The machine can cope with demanding conditions even on larger areas. With smooth control of speed from 0–9 km/h forward and reverse too, you can adjust the speed to suit the conditions without having to interrupt your work by simply shifting the gears.
The set includes the proven RZS121 two-drum mower which can easily handle thick and overgrown grass. Each drum has a steel slider and a pair of hardened swivel blades mounted on a two-point bearing shaft. The drums are driven by a double-sided toothed belt, while power transmission from the engine is provided by a V-belt that protects the engine and gearbox from impact damage. Thanks to the overlapping blades paths, the grass is cut evenly without the typical skipped strips of longer grass.
The main advantages of the Panter FD5:
compact four-wheel chassis with high stabilit
hydrostatic travel for smooth control of speed without the need to shift gears
low maintenance requirements
compatible with a wide range of Panter attachments
easy operation suitable for private and municipal use
Universal machine for year-round use
The Panter FD5 is more than just a drum mower but it can also be equipped with a disc mower, flail mulcher, hay tedder, sweeping brush, snow plough, harrows, trailer and many other attachments. Thanks to compatibility of Panter front attachments, you immediately have dozens of use - without having to buy a new machine.
Ideal for:
maintenance of gardens, orchards and vineyards
cutting tall grass in meadows and unmaintained areas
light agricultural and communal work
users looking for a convenient alternative to manual equipment
Panter FD5 + RZS121 = a powerful machine that can give you a lift which saves your energy, and a reliable partner for those who want to do more with less effort.
| Operating width: | 121 cm, two-drum mower with double-sided toothed belt |
| Optional functions: | disc mowing hay turning and raking, aerating flail and blade mulching snow blowing, removing, sweeping soil ploughing, harrowing, loosening, aerating and potato lifting load transporting, salt and artificial fertilizer spreading |
| Engine: | Briggs&Stratton 4145 OHV, air-cooled one-cylinder |
| Cylinder: | cast iron sleeve, capacity 500 cc |
| Engine start: | independent electro and manual starter |
| Gearbox: | hydrostatic TuffTorq K62 with a single slide control of speed 0÷9 km/hour forward and backward reinforced half-axle with diameter 25.4 mm |
| Gearbox cooling: | own system with an additional cooler protected by utility design, oil temperature indicator placed on the console |
| Axletree: | rear axle driven by a differential, locking and brake |
| Tyres: | rear - 5.00x10 front - 4.00x8 |
| Seat: | comfortable industrial seat with an adjustable suspension in 3 levels, longitudinal setting and option of backrest inclination setting |
| Tank and fuel: | tank capacity 8 litres, fuel Natural 95 petrol |
| Machine weight: | ca. 250 kg in standard design |
| Slope inclination: | safety slope inclination is 10° guaranteed by the Government testing laboratory engine works during permanent 20° slope inclination |
| Equipment included in the price: | Panter FD5 driving unit Order No. 01237.000 RZS 121 two-drum mower adaptor with protection cover Order No. 01236.010 towing hitch for a trailer connection front carrier for Panter adaptors connection Order No. 01237.010 carriers control Order No. 01237.020 electronic safety device parking brake 12V plug |
| Optional equipment not included in the price: | rear carrier for connection of rear tools such as adjustment body, ploughshares, harrow etc. extra weight for wheels 2x13 kg extra weight for rear hitch |
| Order No.: | 01237.000 + 01237.010 + 01237.020 + 01236.010 |
