Panter FD52V driving unit with RZS121 two-drum mower

Panter FD52V driving unit with RZS121 two-drum mower

stronger and bigger four-wheel Panter FD52V machine with RZS121 two-drum mower and wide range of optional extras
More information
Order No.:FD52V + RZS121
Engine: Briggs&Stratton 22.0 HP
Travel: yes, 0-14 km/h forward and backward
The Panter FD52V is a The Panter FD52V will be approved for use on public roads. It has a Briggs&Stratton EXi 7220 twin cylinder engine with maximum output 22 HP and 42 Nm of torque. It is equipped with a TuffTorq K72 hydrostatic transmission with 549 Nm of torque and a rated pulling force of 2,000 Nm.

Compared to the FD5, the Panter FD52V has:
- two-cylinder engine
- pressure lubrication
- oil filter
- 45% more engine power
- EFM (electronic choke)
- 75% more tractive power of hydrostatic travel
- 40% higher maximum travel speed
- 25mm higher chassis
- brakes also on the front axle
- car-like lights, including a socket for a trolley, beacon and other approved features to allow operation on public roads

The Panter FD52V is a good choice in case you need a powerful machine which mows as well as ploughs. You can sit on the machine during operation which makes it much comfortable in compare with walk behind machines. The Panter FD52V is powered by 4-stroke Briggs&Stratton EXi 7220 engine with 22.0 HP output. There is a hydrostatic gearbox which enables single slide control of speed within 0-14 km/hour forward as well backward.
Thanks to its compact size, high stability and minimal demands on maintenance is the Panter FD52V designated for wide range of users. Its easy control will be appreciate during use in the gardens and vineyard, for maintenance of green lands or in municipal sector. The Panter FD5 is compatible for plough, harrows, lifting ploughshare, trailer as well as the adaptors which we manufacture for our Panter kit such as two-drum mower, four-disc mower, belt haymaker, flail mower, sweeping brush etc. The advantage of this machine is the possibility to connect our Panter adaptors as well as the tools for the one-axle tractor (adjustment body, plough, blade, harrows, aerator).

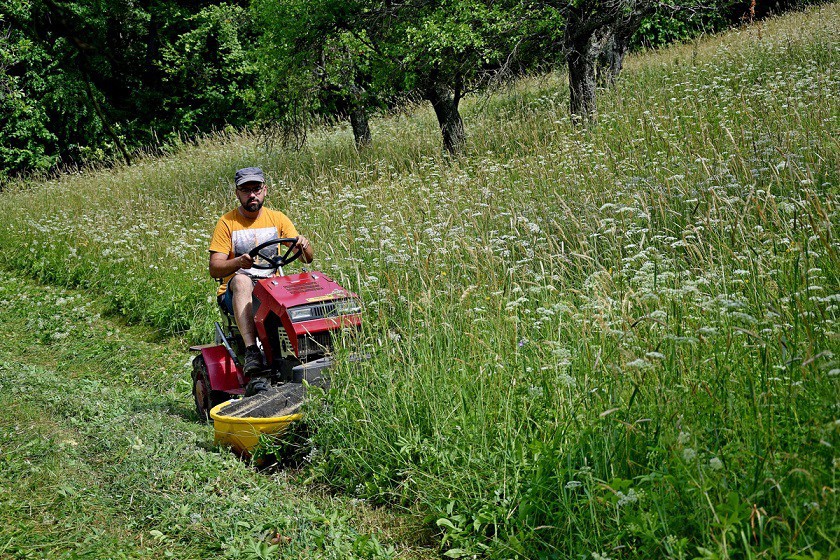

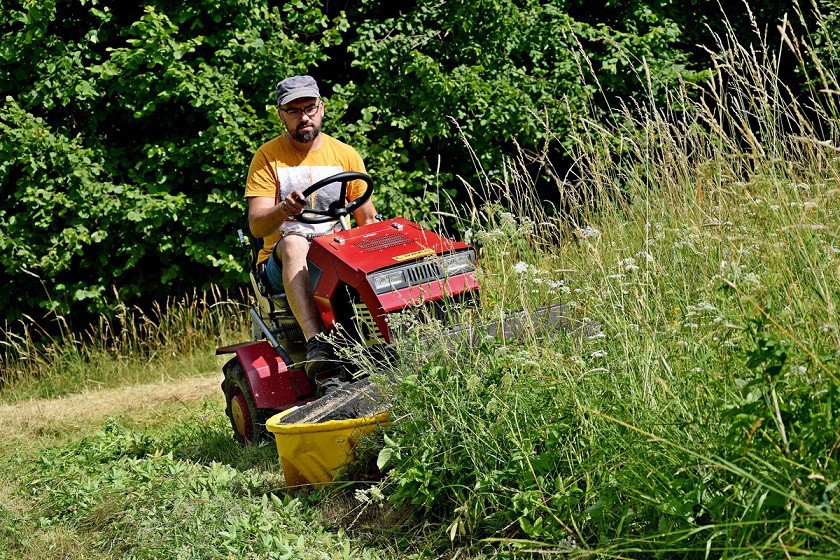

Operating width:121 cm, two-drum mower driven by gearbox and chains
Optional functions:disc mowing
hay turning and raking, aerating
flail and blade mulching
snow blowing, removing, sweeping

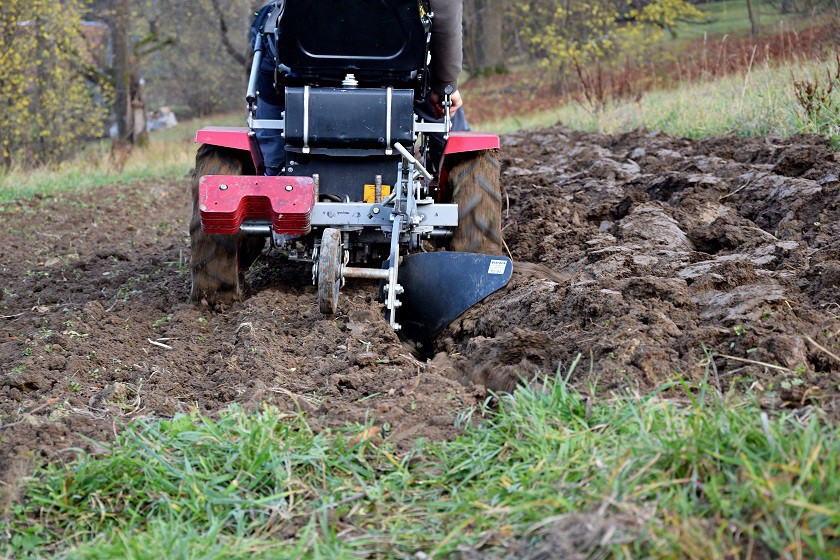

soil ploughing, harrowing, loosening, aerating and potato lifting
load transporting, salt and artificial fertilizer spreading
Engine:Briggs&Stratton EXi 7720 OHV, air-cooled two-cylinder
Cylinder:cast iron sleeve, capacity 656 cc
Engine start:electro-starter
Gearbox:hydrostatic TuffTorq K72 with a single slide control of speed
0÷14 km/hour forward and backward
reinforced half-axle with diameter 25.4 mm
Gearbox cooling:own system with an additional cooler protected by utility design, oil temperature indicator placed on the console
Axletree:rear axle driven by a differential, locking and brake
Tyres:rear - 5.00x12
front - 4.00x10
Seat:comfortable industrial seat with an adjustable suspension
in 3 levels, longitudinal setting and option of backrest inclination setting
Tank and fuel:tank capacity 8 litres, fuel Natural 95 petrol
Machine weight:395 kg
Slope inclination:safety slope inclination is 10° guaranteed by the Government testing laboratory
engine works during permanent 20° slope inclination.
Equipment included in the price:Panter FD52V driving unit     Order No. 01237.005
RZS 121 two-drum mower adaptor with protection cover     Order No. 01236.010
towing hitch for a trailer connection
front carrier for Panter adaptors connection     Order No. 01237.010
carriers control     Order No. 01237.020
electronic safety device
parking brake
12V plug
Optional equipment
not included in the price:
rear carrier for connection of rear tools such as adjustment body, ploughshares, harrow etc.
extra weight for wheels 2x13 kg
extra weight for rear hitch

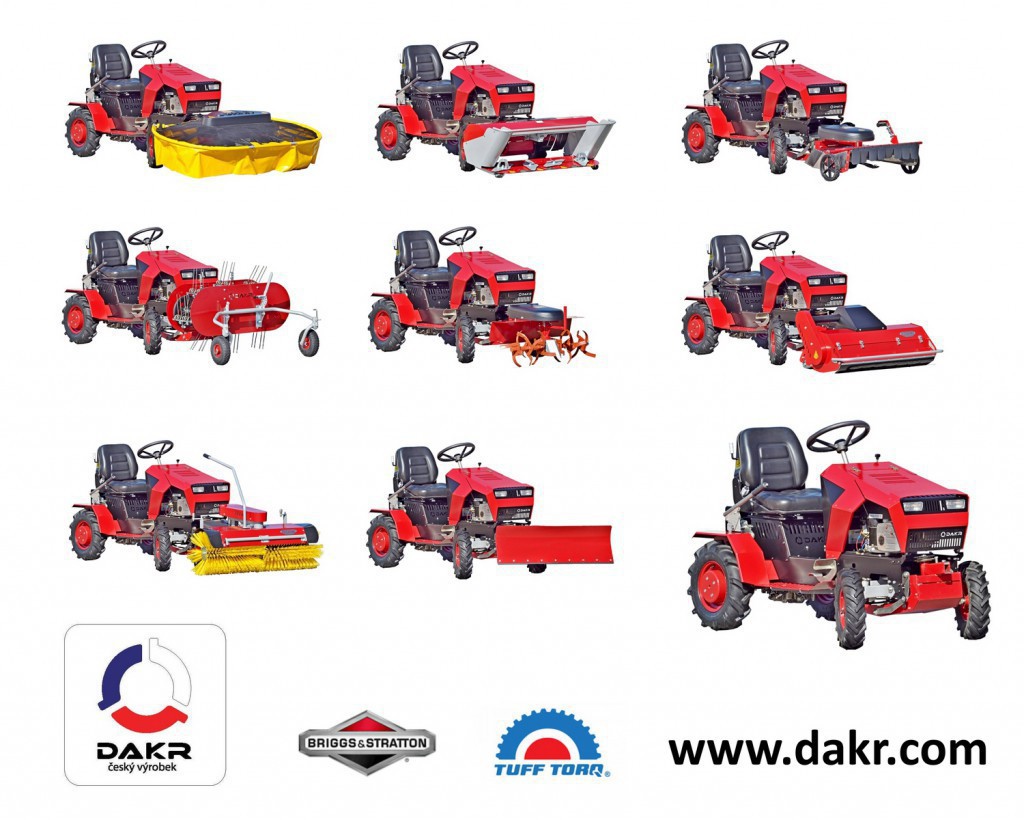

Compatible adaptors
  • Aerator VERTI Panter
    Aerator VERTI Panter

    adaptor for aerating; compatibility with Panter driving units

  • Potato lifting tool
    Potato lifting tool

    It is compatible with Panter FD5 driving unit. For the connection it is necessary to use the NT-3 adjustment body.

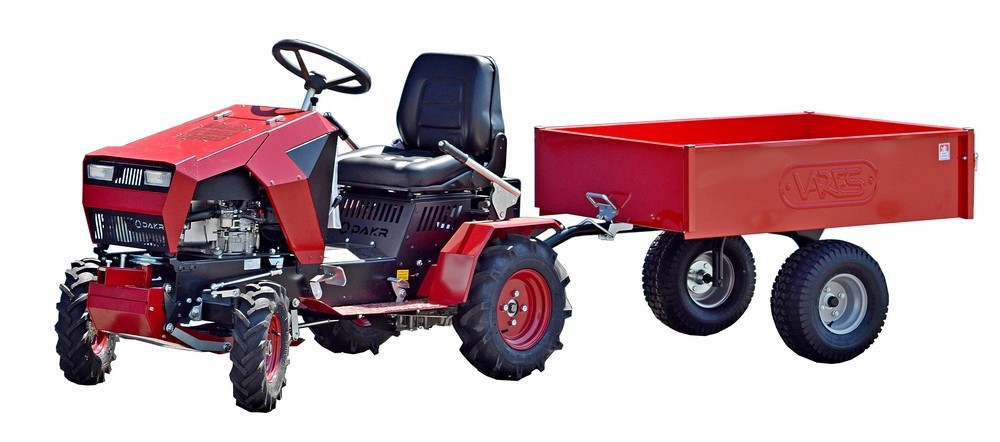

  • Vares TR 220S trailer - NOT FOR SALE SEPARATELY!
    Vares TR 220S trailer - NOT FOR SALE SEPARATELY!

    loading area 1,300 x 1,000 mm; maximum load capacity 400 kg; compatibility with Panter FD5 driving unit

  • One-sided plough
    One-sided plough

    in connection with Panter FD5 driving unit is designed for soil ploughing; it is connected by the NT-3 adjustment body which serves as well for the plough´s setting

  • Adjustment body
    Adjustment body

    is used to clamp the tool such as plough, harrows, lifting blade to the hinge of the Panter FD5 driving unit

  • Weight on FD5 hitch
    Weight on FD5 hitch

    set containing 3 steel plates and their holder in total weight 25 kg to increase the machine´s traction

  • Weights for FD5 wheels
    Weights for FD5 wheels

    set containing 2 steel weights and assembling elements in total weight 25 kg to increase machine´s traction

  • Hiller for FD5
    Hiller for FD5

    hiller compatible with Panter FD5 driving unit

  • BR122 Harrows
    BR122 Harrows

    tool for breaking up and smoothing out the surface of the soil, moss removal etc.; compatibility with Panter FD5 driving unit

  • Towing ball for FD5
    Towing ball for FD5

    ISO 50 trailer hitch with ball

  • ZN1 - Rear carrier for FD5
    ZN1 - Rear carrier for FD5

    it is used for ploughing, potato lifting, harrows connection etc.

  • MC100 Flail mower Panter
    MC100 Flail mower Panter

    adaptor for grass mulching; compatibility with Panter driving units

  • ROT Rotary cultivator Panter
    ROT Rotary cultivator Panter

    adaptor for soil loosening; compatibility with Panter driving units

  • SB 110 Sweeping brush Panter
    SB 110 Sweeping brush Panter

    snow removal; operating width 110 cm; collecting container and protection shield as option; compatibility with Panter driving unit

  • RAP100 Blade Panter
    RAP100 Blade Panter

    adaptor for snow removal compatible with Panter driving units; operating width 100 cm

  • SF70 Snow blower Panter
    SF70 Snow blower Panter

    adaptor for snow removal; operating width 69 cm; compatibility with Panter driving units

  • OP114 Hay turner Panter
    OP114 Hay turner Panter

    adaptor for hay turning and raking compatible for Panter driving units; operating width 90 cm

  • M70 Mulcher Panter
    M70 Mulcher Panter

    adaptor compatible with Panter FD2 and FD2H driving units; operating width 71 cm

  • DZS125 Four-disc mower Panter
    DZS125 Four-disc mower Panter

    adaptor compatible for Panter driving units, operating width 125 cm
