Panter FD52V driving unit
Panter FD52V driving unitPanter FD52V driving unitPanter FD52V driving unitPanter FD52V driving unit
Panter FD52V driving unit

Panter FD52V driving unit

stronger and bigger four-wheel Panter FD52V machine; max. engine output 22.0 HP; iron cylinder sleeve; hydrostatic gearbox; forward and backward control of speed; axle with differential and locking; electric start; adaptor´s lifting from operator´s position; wide range of optional extras
More information
Order No.:01237.005
Engine: Briggs&Stratton 22.0 HP
Travel: yes, 0-14 km/h forward and backward

The Panter FD52V will be approved for use on public roads. It has a Briggs&Stratton EXi 7220 twin cylinder engine with maximum output 22 HP and 42 Nm of torque. It is equipped with a TuffTorq K72 hydrostatic transmission with 549 Nm of torque and a rated pulling force of 2,000 Nm.

Compared to the FD5, the Panter FD52V has:
- two-cylinder engine
- pressure lubrication
- oil filter
- 45% more engine power
- EFM (electronic choke)
- 75% more tractive power of hydrostatic travel
- 40% higher maximum travel speed
- 25mm higher chassis
- brakes also on the front axle
- car-like lights, including a socket for a trolley, beacon and other approved features to allow operation on public roads

The Panter FD52V is a good choice in case you need a powerful machine which mows as well as ploughs. You can sit on the machine during operation which makes it much comfortable in compare with walk behind machines. The Panter FD52V is powered by 4-stroke Briggs&Stratton Exi 7220 engine with 22.0 HP output. There is a hydrostatic gearbox which enables single slide control of speed within 0-14 km/hour forward as well backward.
The machine is propelled by a TUFFTORQ K72 hydrostatic transmission with a mechanical differential lock and reinforced half axles 25.4mm in diameter. The transmission is also fitted with our unique cooling system (protected by a utility model), which keeps the engine cool even under high, persistent load. Use of the hydrostatic transmission enables the both the forward and reverse speed to be adjusted fluidly, even when under load. The drive speed can be changed at any time. The machine is very comfortable to drive thanks to the sprung industrial seat, which has adjustable tension and can be adjusted forwards or backwards, and the backrest can also be tilted. The Panter FD52V is designed as a modular machine with the option to add functions to suit the customer’s needs.

Working functions

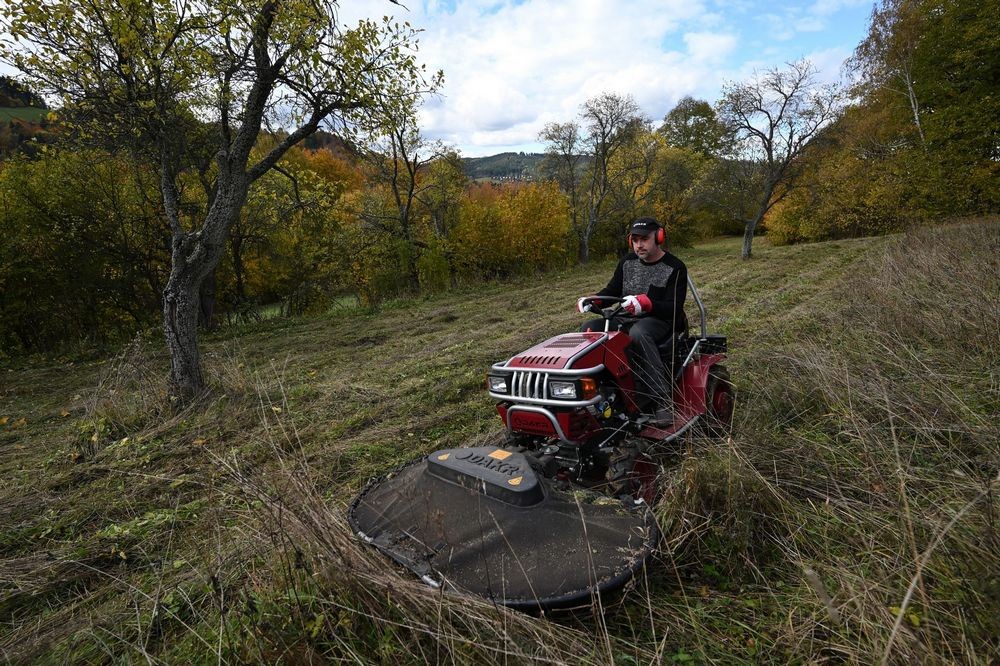

- drum and disc mowing
- turning, aerating and raking
- gripping and knife mulching

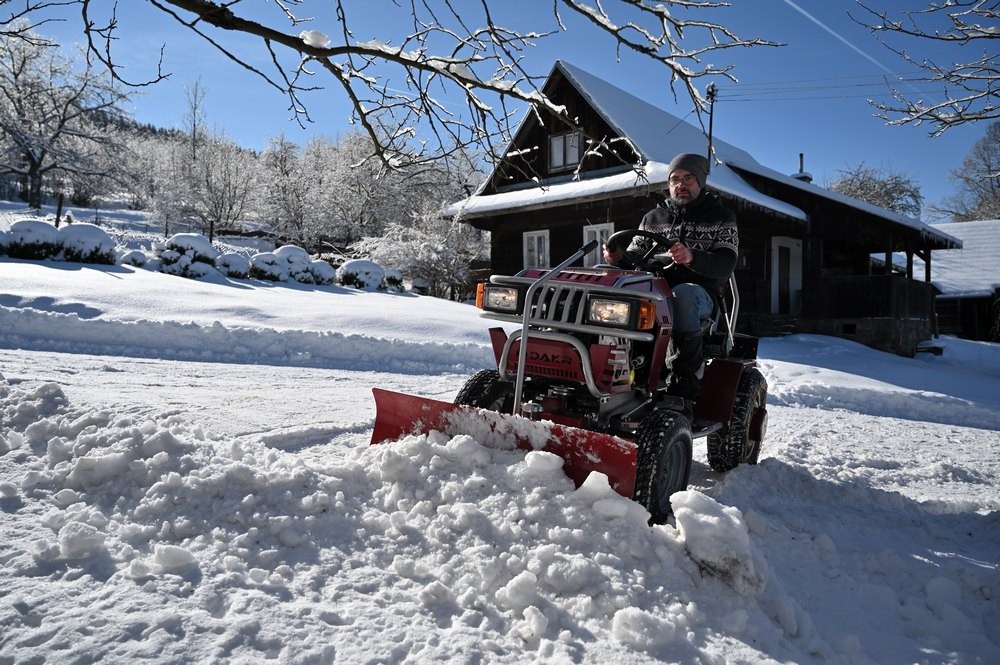

- milling, mowing and sweeping snow
- ploughing, harrowing, loosening and grading the soil, potato harvesting
- cargo handling, salt spreading and artificial fertilizers
Engine- Briggs&Stratton 7220 EXi
- two-cylinder air-cooled spark-ignition 4-stroke with valve distribution OHV
- pressure lubrication, oil filter
Engine´s cylinder- cast iron sleeve, engine capacity 656 cc
Engine start- electric
Torque- 42.0 Nm at 2,600 rpm
Gearbox- hydrostatic TuffTorq K72 with smooth speed change
- 0-14 km/h forwards and backwards
- half-axis reinforced with a diameter of 25.4mm
- max. torque 549 Nm, towing capacity 2,000 N
Gearbox cooling- auxiliary cooler protected by a utility model, oil temperature gauge on the dashboard
Axle- rear axle with differential, lock and brake
Tires- 5.00x12 rear
- 4.00x10 front
Tractor seat- comfortable industrial seat with adjustable suspension in 3 steps, longitudinal adjustment and adjustable backrest inclination
Tank and fuel- tank volume 7.5 liters, fuel Natural 95 petrol
Machine weight- 299 kg basic model
- 340 kg completely equipped model without weights
- 25 kg set of wheels weights
- 25 kg set of rear hitch´s weights
Maximum inclination- safety slope inclination is 10° guaranteed by the Government testing laboratory
- the engine runs safely at a steady 20 ° inclination

Equipment included

- hitch for trailer´s connection
- electronically securing the machine with the gearbox operating load control.
- handbrake
- 12V socket
- front and rear direction lights, oil temperature and battery voltage indicator, horn, lighter socket, safety fram, slow moving vehicle triangle, rear state registration plate
Optional accessories
(not included in the price)		- 01237.010 front carrier for Panter adaptors
- 01237.015 rear carrier for connection of an adjustment body, varied ploughshares, harrows
- 01237.020 control levers for carriers
- 01237.030 set of wheels weights (2x12.5 kg)
- 01237.035 set of rear hitch´s weights (25 kg)
