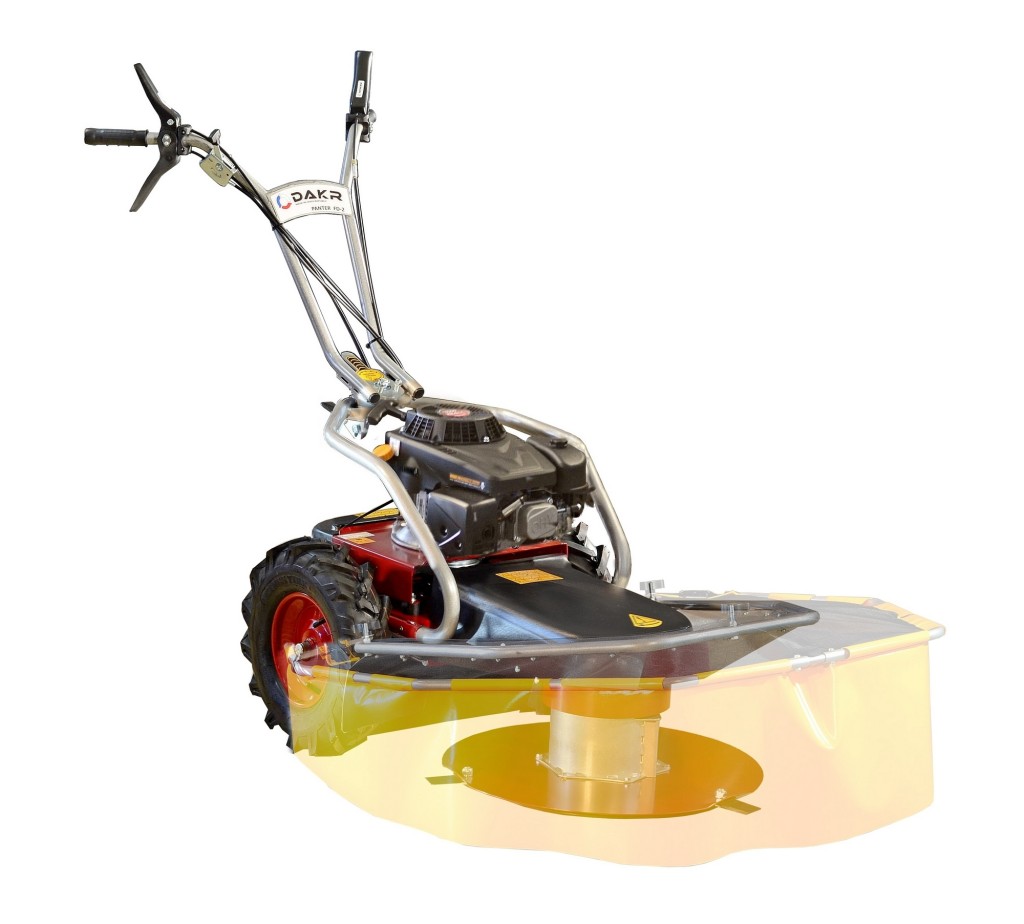

Panter FD2 L224 driving unit with RZS70K one-drum mower
| Order No.: | 01235.101 |
| Max. output: | 3,036 m2/hour |
| Max. operating width: | 69 cm |
| Engine: | Loncin 7.3 HP |
| Travel: | yes, 3 speeds forward |
Vibrations of the machine are minimized by mounting the engine on silentblocks and shaping the handlebars.
Specifications:
| Max. output with Panter FD2: | 3,036 m2/hour |
| Max. operating width: | 69 cm |
| Disc: | 3 blades with pivoting fender apron with ball bearing |
| Stubble height: | adjustable in 3 hights: 2.5 - 4.5 cm |
| Weight: | 74 kg |
| Travel: | yes, 3 speeds forward |
| Speeds: | 2.1 3.0 4.4 km/hour |
| Axletree: | solid |
| Gearbox: | worm gear unit, Czech made with hardened ground worm and bronz worm wheel |
| Engine vibration attenuation: | 4 silent blocks |
| Handlebars: | height and side adjustable |
| Tyres: | big blown wheels 420 mm with V-shaped tread pattern |
| Wheels outer profile: | at choice, 65 and 68 cm |
| Engine: | 4-stroke Loncin 224 OHV (LC1P75F) |
| Fuel: | gasoline Natural 95 |
| Engine capacity: | 224 cc |
| Cylinder: | cast iron sleeve |
| Engine working speed: | 3,060 rpm |
| Total max. engine output: | 7.3 HP/5.5 kW |
| Engine output at 3,060 rpm: | HP/kW |
| Torque at 3,060 rpm: | 14 Nm |
| Engine lubricaton: | spray lubrication |
| Engine starting: | easy start with automatic choke |
