Panter FD2H driving unit with M70 mulcher

Panter FD2H driving unit with M70 mulcher

modular self-propelled mulcher with hydrostatic gearbox and single slide control of speed forward and backward; B&S engine 850 I/C with capacity 190 ccm; max. output 6.5 HP; iron cylinder sleeve, oil pump and filter; operating width 71 cm
More information
Kód produktu:01235.019 + 01235.052
Max. output: 2,992 m2/hour
Max. operating width: 71 cm
Max. engine output: 6.5 HP
Travel: single slide control of speed forward and backward
The M70 mulcher is suitable for the flat ground as well as hilly terrain. The height setting is performed centrally by lever. The machine has special mulching blade rotating horizontally. The Panter driving units are compatible with a range of adaptors such as a drum mower, a disc mower, a haymaker, a snow blower, a cart, a sweeping brush, a blade, a rotavator, a branch crusher. You can attach a seat or trailer too.

M70 mulcher specifications:

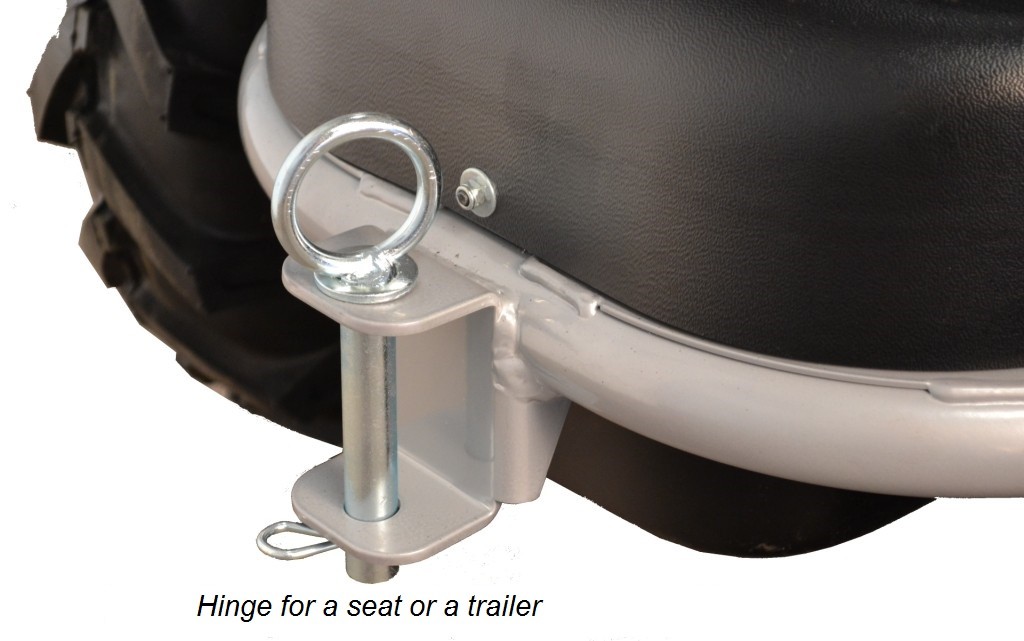

Options:seat for flat grounds and slight slopes
Max. output with Panter FD2:2,992 m2/hour
Max. output with Panter FD3:6,800 m2/hour
Max. operating width:71 cm
Stubble height:centrally regulable 4-9 cm
Weight:32 kg
Recommended maintained area:unlimited
Compatible driving units:Panter FD2, FD2H, FD3eco, FD3-500

Panter FD2H driving unit specifications: Engine starting:
Travel:yes, single slide control speed forward and backward
Speeds:forward 0÷6 km/hour, backward 0÷3 km/hour
Axletree:lockable differential and brake
Gearbox:hydrostatic Tuff Torq K46
Other equipment:driving brake
Engine vibration attenuation:4 silent blocks
Handlebars:height and side adjustable
Tyres:big blown wheels 420 mm with V-shaped tread pattern
Wheels outer profile:at choice, 65 and 68 cm
Weight:56 kg

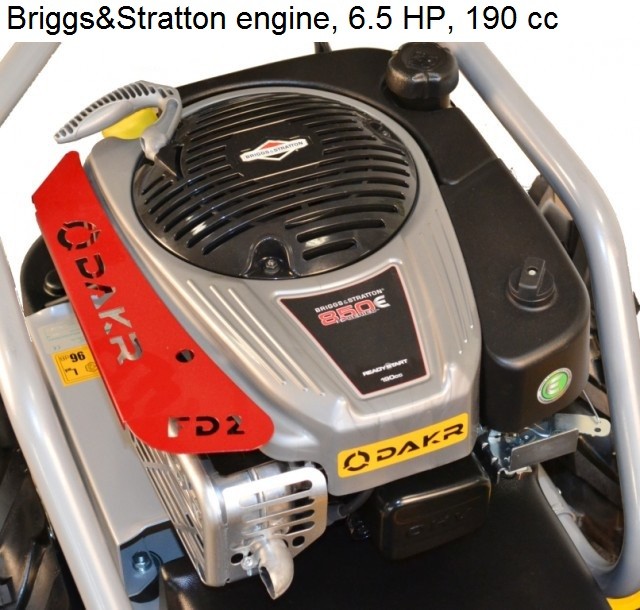

Engine:4-stroke Briggs&Stratton I/C, 850 Series OHV
Fuel:gasoline Natural 95
Engine capacity:190 cc
Cylinder:cast iron sleeve
Engine working speed:3,060 rpm
Total max. engine output:6.5 HP/4.8 kW
Engine output at 3,060 rpm:5.0 HP/3.7 kW
Torque at 3,060 rpm:11.5 Nm
Engine lubricaton:pressure oil filtration, spray lubrication
Engine starting:Ready Start System - easy starting without choke
