Panter FD2H driving unit with RZS70K one-drum mower
Panter FD2H driving unit with RZS70K one-drum mowerPanter FD2H driving unit with RZS70K one-drum mowerPanter FD2H driving unit with RZS70K one-drum mowerPanter FD2H driving unit with RZS70K one-drum mower
Panter FD2H driving unit with RZS70K one-drum mower

Panter FD2H driving unit with RZS70K one-drum mower

modular self-propelled one-drum mower with hydrostatic gearbox and single slide control of speed forward and backward; B&S engine 850 I/C with capacity 190 cc; max. output 6.5 HP; iron cylinder sleeve; oil pump and filter; operating width 69 cm
More information
Order No.:01235.029
Max. operating width: 69 cm
Engine: Briggs&Stratton 6.5 HP
Travel: yes, single slide control of speed forward and bacward
The driving unit has the single slide control of speed forward and backward. Panter mower is suitable for the hardest hilly terrains. On the flat grounds and in slight slopes it has sufficient power and solidity to the operator can comfortably sit on the connected seat.
To the driving unit it is possible to connect the seat and the wide range of adaptors such as mulcher, haymaker, snow blower, cart, sweeping brush, blade, rotavator, branch crusher.
The Panter FD2H driving unit is fitted with Briggs&Stratton I/C 850 Series with 190 cc capacity and 6.5 HP output. This engine version is intended for the most demanding industrial and proffesional use because it is equipped with iron cylinder sleeve, carburator designed for bigger slopes, oil filter and oil pump. The I/C engines are for us a guarantee of success in demanding working condition.

RZS70K mower specifications:
Max. output with Panter FD2H:3,036 m2/hour
Max. operating width:69 cm
Cutting mechanism:3 blades with pivoting fender apron with ball bearing
Stubble height:3.5 cm in average
Weight:20 kg
Options:seat for flat grounds and slight slopes
Recommended maintained area:unlimited

Panter FD2H driving unit specifications:
Travel:yes, single slide control speed forward and backward
Speeds:forward 0÷6 km/hour, backward 0÷3 km/hour
Axletree:lockable differential and brake
Gearbox:hydrostatic Tuff Torq K46DE
Other equipment:drving brake
Engine vibration attenuation:4 silent blocks

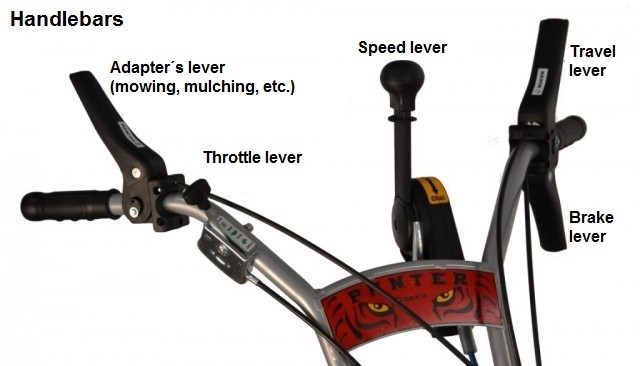

Handlebars:height and side adjustable
Tyres:big blown wheels 420 mm with V-shaped tread pattern
Wheels outer profile:at choice, 65 and 68 cm
Weight:56 kg
Engine:4-stroke Briggs&Stratton I/C, 850 Series OHV
Fuel:gasoline Natural 95
Engine capacity:190 cc
Cylinder:cast iron sleeve
Engine working speed:3,060 rpm
Total max. engine output:6.5 HP/4.8 kW
Engine output at 3,060 rpm:5.0 HP/3.7 kW
Torque at 3,060 rpm:11.5 Nm
Engine lubricaton:pressure oil filtration, spray lubrication
Engine start:ReadyStart system - easy starting without choke
