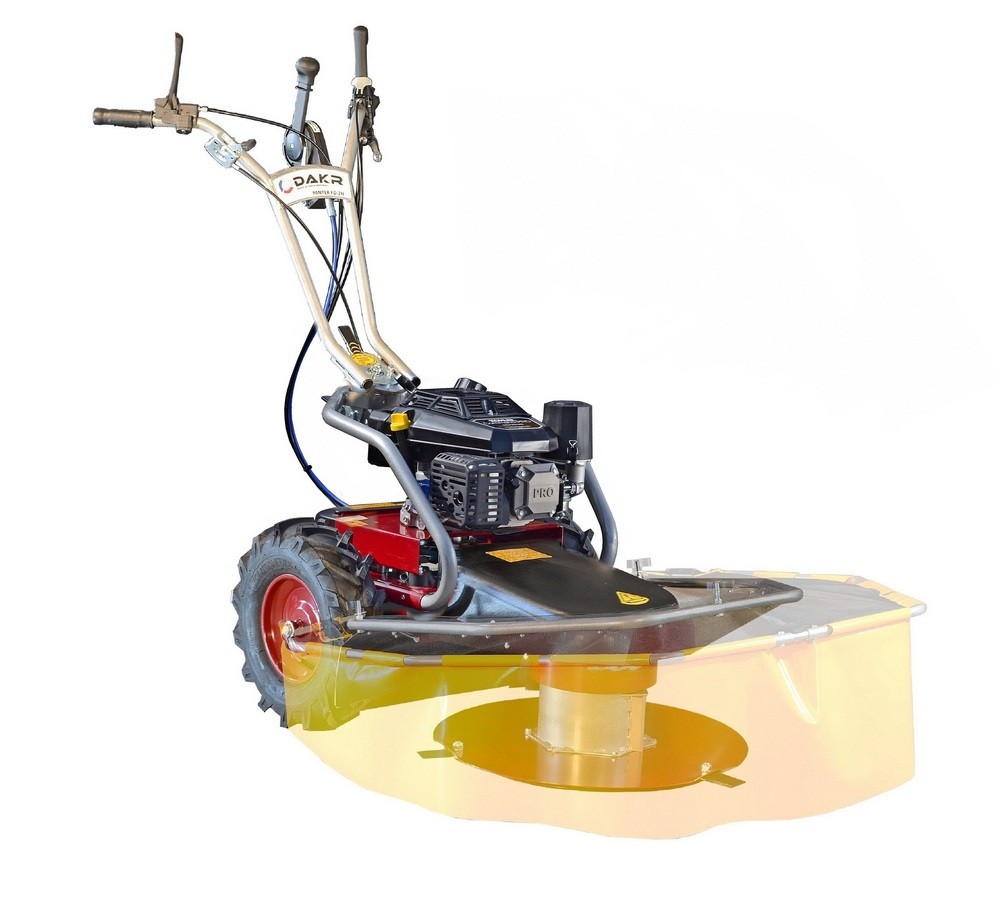

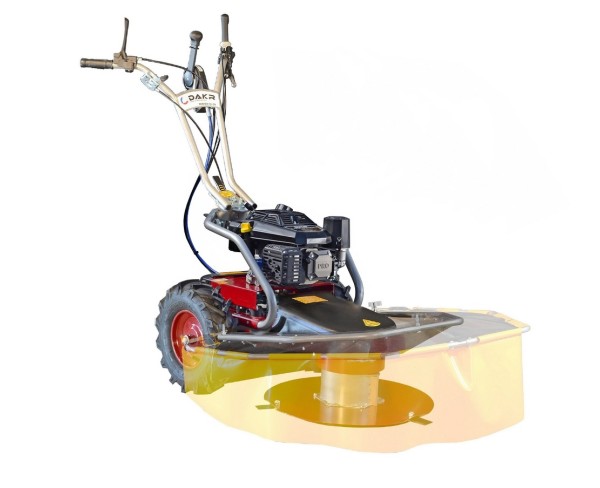

Panter FD2H Kohler driving unit with RZS70K one-drum mower
Order No.: | 01235.229 |
Max. output: | 3,036 m2/hour |
Max. operating width: | 69 cm |
Engine: | Kohler |
Engine capacity: | 224 cc |
Travel: | yes, single slide control of speed forward and backward |
To the driving unit it is possible to connect the seat and the wide range of adaptors such as mulcher, hay tedder and rake, snow blower, plough, cart, sweeping brush, rotavator, branch shredder and more.
The speed of travel is easily changed by a lever on the handlebars. Thanks to the hydrostatic transmission, the travel speed can be precisely adapted to the actual work and the physical capabilities of the operator.
The Panter FD2H Kohler driving unit is fitted with Kohler engine with 224 cc capacity. The Kohler engine with cast iron cylinder and pressure lubrication offers long life, load resistance and refined operation. This machine is a suitable choice for professional and demanding hobby use in a variety of terrains.
Specifications:
Max. output: | 3,036 m2/hour |
Max. operating width: | 69 cm |
Cutting mechanism: | 3 blades with pivoting fender apron with ball bearing |
Stubble height: | adjustable in 3 hights : 2.5 - 4.5 cm |
Weight: | 81 kg |
Recommended maintained area: | unlimited |
Travel: | yes, single slide control speed forward and backward |
Speeds: | forward 0÷6 km/hour, backward 0÷3 km/hour |
Axletree: | lockable differential and brake |
Gearbox: | hydrostatic Tuff Torq K46DE |
Other equipment: | driving brake |
Engine vibration attenuation: | 4 silent blocks |
Handlebars: | height and side adjustable |
Tyres: | big blown wheels 420 mm with V-shaped tread pattern |
Wheels outer profile: | 67 cm |
Engine: | 4-stroke Kohler Command PRO CV224 |
Fuel: | gasoline Natural 95 |
Engine capacity: | 224 cc |
Cylinder: | cast iron sleeve |
Engine working speed: | 3,060 rpm |
Torque at 3,060 rpm: | 14.9 Nm |
Engine lubricaton: | pressure lubrication |
Engine starting: | easy starting with mechanical choke |
- Cutting disc with tongues
special design of the tongue for a disc´s longer lifetime; compatible for RZS70, RZS70K, RZS 69 one-drum mowers
- BPR2 Steerable seat Panter
steerable seat compatible with Panter FD2 and FD2H driving units, controlled by pair of feet pedals; max. seat capacity 110 kg
- DV70 Branch crusher Panter
adaptor for branch shredding; compatibility with Panter driving units
- ROT Rotary cultivator Panter
adaptor for soil loosening; compatibility with Panter driving units
- SB 110 Sweeping brush Panter
snow removal; operating width 110 cm; collecting container and protection shield as option; compatibility with Panter driving unit
- Vares HV 220/S Trailer - NOT FOR SALE SEPARATELY!
loading area 1,240 x 950 mm; maximum load capacity 220 kg; compatibility with Panter driving units
- KOR220 Steerable chassis Panter
multipurpose steerable chassis is compatible with rigid body, yard-woods body and plastic crate body; steerable wheels; max. loading capacity 220 kg; compatibility with Panter driving units
- RAP100 Blade Panter
adaptor for snow removal compatible with Panter driving units; operating width 100 cm
- RAP85 Blade Panter
adaptor for snow removal compatible with Panter driving units; operating width 85 cm
- SF70 Snow blower Panter
adaptor for snow removal; operating width 69 cm; compatibility with Panter driving units
- OP114 Hay turner Panter
adaptor for hay turning and raking compatible for Panter driving units; operating width 90 cm
- M70 Mulcher Panter
adaptor compatible with Panter FD2 and FD2H driving units; operating width 71 cm
- BP Seat Panter
non-steerable seat compatible for Panter driving units; max. seat capacity 100 kg
- DZS125 Four-disc mower Panter
adaptor compatible for Panter driving units, operating width 125 cm
- RZS70 EU Protective cover
cover protecting against stones flying in all directions from the mower, design for a RZS70K and RZS70 one-drum mower
- Panter FD2 + RZS70K One-drum mower
modular self-propelled one-drum mower; solid axle; 3 forward speeds; B&S engine 850 I/C with capacity 190 cc; max. output 6.5 HP; iron cylinder sleeve; oil pump and filter; operating width 69 cm
