Panter FD3-500 driving unit with SF70 snow blower
Panter FD3-500 driving unit with SF70 snow blowerPanter FD3-500 driving unit with SF70 snow blowerPanter FD3-500 driving unit with SF70 snow blowerPanter FD3-500 driving unit with SF70 snow blower
Panter FD3-500 driving unit with SF70 snow blower

Panter FD3-500 driving unit with SF70 snow blower

modular self-propelled snow blower; operating width 69 cm; B&S engine max. output 15.5 HP; hydrostatic gearbox; differential with locking; forward and backward control of speed; electric start
More information
Order No.:01236.001 + 01235.071
Max. output: 3,036 m2/hour
Max. operating width: 69 cm
Engine: Briggs&Stratton 15.5 HP
Travel: yes, single slide control of speed forward and backward

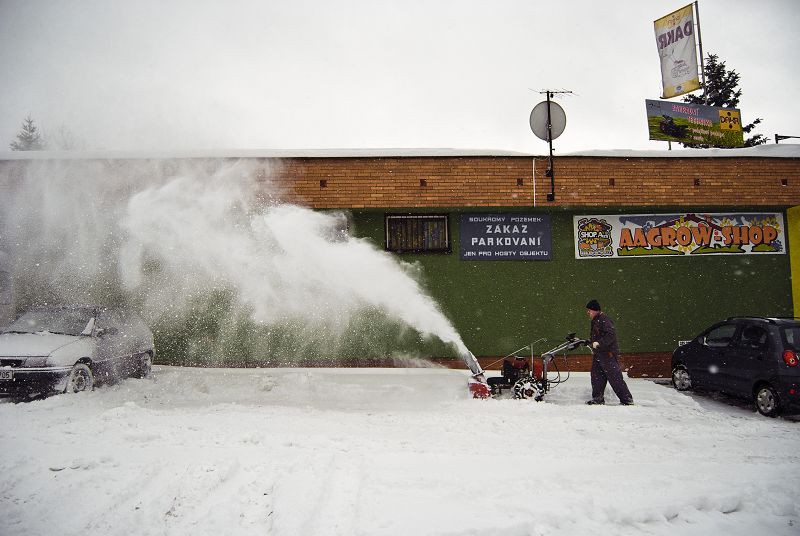

The snow blower in connection with the Panter FD3-500 driving unit is appropripate machine for really demanding conditions where it is necessary to remove the snow over tall barriers or to long distance. Thanks to a powerful engine it can cope with 30 centimetres fresh snow cover. The possibility to set 2 different revolutions of the blade´s speed makes our snow blower unique. When you need to clean fresh powder snow set the faster revolutions (1,850 RPM) to the snow blows as far as possible. While you set the slower revolutions (1,285 RPM) you can remove the heavy wet snow more effectively. Thanks to rotating chimney it is possible to influence the thrown snow direction (forward, aside). The machine has a differential with locking and it is equipped with headlight and electrostarter with 12 V recharging battery. The Tuff Torq hydrostatic gearbox enables single slide control of speed so you can adapt the speed to the current conditions. When you need to go backwards you just gear the required backward speed. For the winter maintenance there are also the snow chains (order No. 10100.082) available.
This powerful machine is suitable for maintenance of large areas and municipal services too. The modular driving unit offers a range of other adaptors such as a sweeping brush, a mower, a mulcher, a cart, a salt spreader etc.

Panter FD3-500 and SF70 snow blower specifications:
Max. output:3,036 m2/hour
Max. operating width:69 cm
Engine:4-stroke Briggs&Stratton I/C, Powerbuilt OHV / capacity 500 cc, output 15.5 HP
Gearbox / Axletree:hydrostatic gearbox Tuff Torq K46 / lockable differential
Travel:single slide control of speed forward (0÷8 km/hour) and backward (0÷4 km/hour)
Recommended maintained area:unlimited
Engine vibration attenuation:4 silent blocks
Engine starting:electro-starter, manual reserve starter
Fuel:gasoline Natural 95
Weight:156 kg
Blade speed:at choice 1,285/1,850 rpm
Feed worm speed:516 rpm
Handlebars:height and side adjustable
Wheels:big blown wheels with V-shaped pattern 19x8" (diameter 480 mm), outer profile 760 mm
Other equipment:driving brake, parking brake, headlight, charging battery
