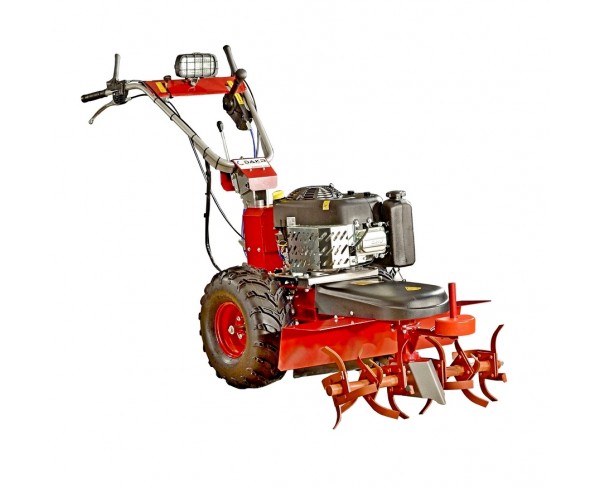

Panter FD3-500 driving unit with ROT rotavator
Panter FD3-500 driving unit with ROT rotavatorPanter FD3-500 driving unit with ROT rotavatorPanter FD3-500 driving unit with ROT rotavatorPanter FD3-500 driving unit with ROT rotavator
Panter FD3-500 driving unit with ROT rotavator

Panter FD3-500 driving unit with ROT rotavator

modular self-propelled rotavator; operating width 80 cm; B&S engine max. output 15.5 HP; hydrostatic gearbox; differential with locking; forward and backward control of speed; electric start
More information
Order No.:01236.001 + 01235.130
Engine: Briggs&Stratton 15.5 HP
Travel: yes, single slide control of speed forward and backward
The more powerful Panter FD3-500 driving unit fitted with Briggs&Stratton I/C, Powerbuilt OHV with capacity 500 cc. Even the customers who bought the machine with B&S engine 344 cc can replace it with this stronger one.

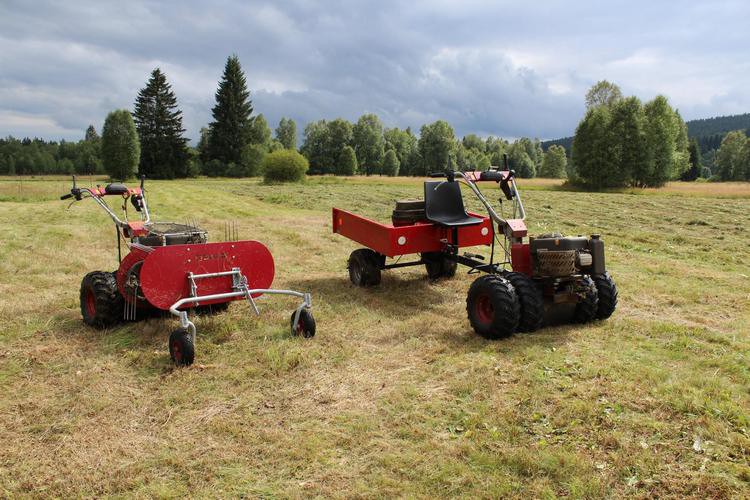

To the driving unit it is possible to connect the seat and the wide range of adaptors such as mulcher, haymaker, snow blower, cart, sweeping brush, blade, rotavator, branch crusher.

Specifications:
Travel:yes, single slide control of speed forward and backward
Speeds:forward 0÷8 km/hour, backward 0÷4 km/hour
Axletree:lockable differential
Gearbox:hydrostatic Tuff Torq K46
Other equipment:driving brake, parking brake, headlight, charging battery
Engine vibration attenuation:4 silent blocks
Handlebars:height and side adjustable
Tyres:big blown wheels 480 mm with V-shaped tread pattern
Wheels outer profile:76 cm
Weight:124 kg
Engine:4-stroke Briggs&Stratton I/C, Powerbuilt OHV
Fuel:gasoline Natural 95
Engine capacity:500 cc
Cylinder:cast iron sleeve
Max. engine output:15.5 HP/11.3 kW
Torque at 3,600 rpm:30.2 Nm
Engine lubricaton:spray
Engine starting:electro-starter, manual reserve starter



Panter FD3-500 driving unit with ROT rotavatorPanter FD3-500 driving unit with ROT rotavatorPanter FD3-500 driving unit with ROT rotavator





Compatible adaptors
