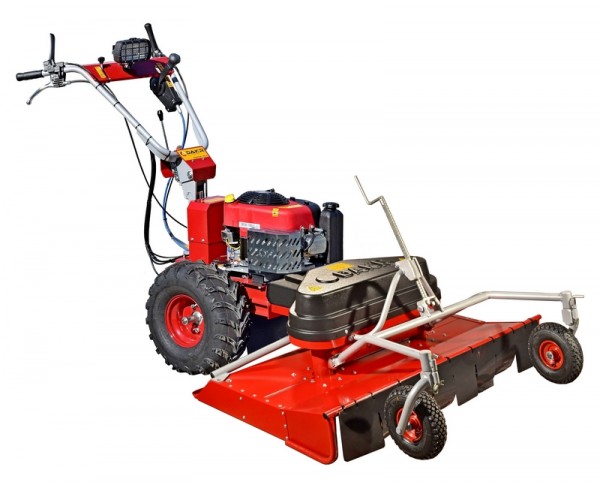

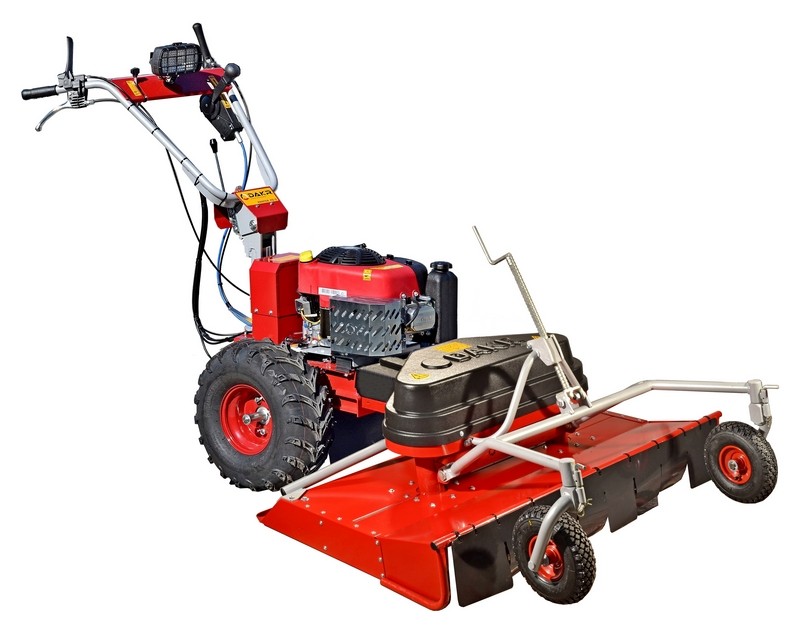

Panter FD3eco driving unit with M121 two-blade mulcher

Panter FD3eco driving unit with M121 two-blade mulcher

modular self-propelled mulcher with operating width 121 cm, hydrostatic gearbox, single slide control of speed forward and backward, B&S engine with max. output 13.2 HP
More information
Order No.:01236.005 + 01236.021
Max. output: 9,680 m2/hour
Max. operating width: 121 cm
Engine: Briggs&Stratton 13.2 HP
Travel: yes, single slide control of speed forward and backward
The M121 mulcher is suitable for large areas over 0.5 hectare. The advantage is that it is not necessary to rake the mulched grass but the grass has to be mulched 4 times per year depending on its height, density and the type of grass. The height setting is performed centrally by lever. The mulching mechanism has special mulching blade rotating horizontally. To the Panter driving unit it is possible to connect the seat and the range of adaptors such as drum mower, disc mower, haymaker, snow blower, cart, sweeping brush, blade, rotavator, branch crusher.

M121 mulcher specifications:
Options:seat for flat grounds and slight slopes
Max. output with Panter FD3:9,680 m2/hour
Max. operating width:121 cm
Stubble height:centrally regulable 3-10 cm
Weight:87 kg
Recommended maintained area:unlimited
Compatible driving units:Panter FD3eco, FD3-500

Panter FD3eco driving unit specifications:
Travel:yes, single slide control of speed forward and backward
Speeds:forward 0÷8 km/hour, backward 0÷4 km/hour
Axletree:lockable differential
Gearbox:hydrostatic Tuff Torq K46
Other equipment:driving brake
Engine vibration attenuation:4 silent blocks
Handlebars:height and side adjustable
Tyres:big blown wheels 480 mm with V-shaped tread pattern
Wheels outer profile:76 cm
Weight:118 kg
Engine:4-stroke Briggs&Stratton I/C, Powerbuilt OHV
Engine starting:manual starter
Fuel:gasoline Natural 95
Engine capacity:344 cc
Cylinder:cast iron sleeve
Engine working speed:3,400 rpm
Engine output at 3,600 rpm:13.2 HP/9.7 kW
Torque at 3,600 rpm:25.7 Nm
Engine lubricaton:spray
