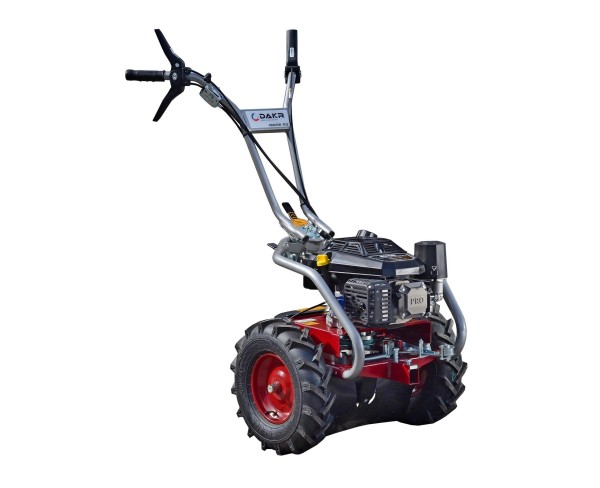

Panter FD2 Kohler driving unit
| Order No.: | 01235.211 |
| Engine: | Kohler |
| Engine capacity: | 224 cc |
| Travel: | yes, 3 speeds forward |
It is a driving unit for the Panter kit, equipped with a powerful Kohler 224 cc four-stroke engine with 14.9 Nm of torque. The engine is equipped with a cast iron cylinder for long life and high durability even under heavy duty operation and pressure lubrication of the engine.
The three forward travel speeds allow you to adapt the pace of work to the specific conditions.
The solid axle ensures stability and direct power transmission.
It is compatible with the full range of Panter attachments - from mowers to mulchers to snow blowers.
With this unit, you can easily and flexibly adapt the machine to the season and the type of work. It can be connected to a wide range of attachments, which can be found in the attachments section for this product at the bottom of this page.
Specifications:
| Travel: | yes, 3 speeds forward |
| Speeds: | 2.1 3.0 4.4 km/hour |
| Axletree: | solid |
| Gearbox: | worm gear unit, Czech made with hardened ground worm and bronz worm wheel |
| Engine vibration attenuation: | 4 silent blocks |
| Handlebars: | height and side adjustable |
| Tyres: | big blown wheels 420 mm with V-shaped tread pattern |
| Wheels outer profile: | at choice, 65 and 68 cm |
| Weight: | 59 kg |
| Engine: | 4-stroke Kohler Command PRO CV224 |
| Fuel: | gasoline Natural 95 |
| Engine capacity: | 224 cc |
| Cylinder: | cast iron sleeve = double engine life |
| Engine working speed: | 3,060 rpm |
| Torque at 2,800 rpm: | 14.9 Nm |
| Engine lubricaton: | pressure lubrication |
| Engine starting: | manual start with mechanical choke |
