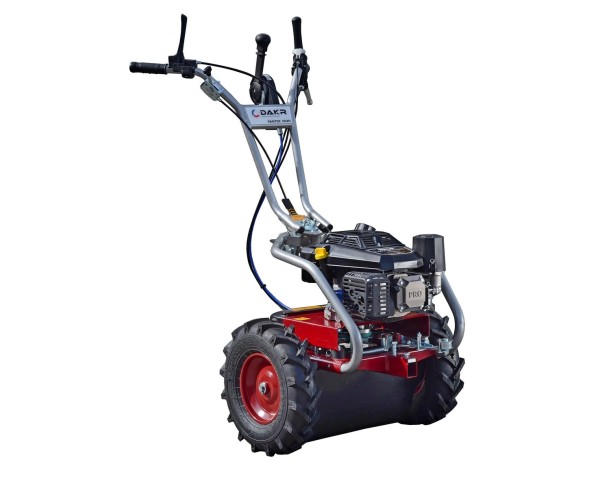

Panter FD2H Kohler driving unit
| Order No.: | 01235.219 |
| Engine: | Kohler |
| Travel: | yes, single slide control of speed forward and backward |
The FD2H power unit is designed for the Panter kit and is equipped with a professional four-stroke KOHLER engine with a capacity of 224 cc, which offers a torque of 14.9 Nm. The engine is equipped with a cast iron cylinder for high durability and long service life, plus pressure lubrication to ensure reliable operation even under long-term load.
The hydrostatic travel with smooth control of speed allows precise adjustment of the speed to the working conditions.
The differential with locking increases working comfort and ensures precise machine guidance and efficient power transmission.
It is compatible with the full range of Panter attachments - from mowers to mulchers to snow blowers..
This machine gives you an all-round basis for year-round work around the house, in the garden or in the municipal sphere.
Specifications:
| Travel: | yes, single slide control speed forward and backward |
| Speeds: | forward 0÷6 km/hour, backward 0÷3 km/hour |
| Axletree: | lockable differential and brake |
| Gearbox: | hydrostatic Tuff Torq K46DE |
| Other equipment: | driving brake |
| Engine vibration attenuation: | 4 silent blocks |
| Handlebars: | height and side adjustable |
| Tyres: | big blown wheels 420 mm with V-shaped tread pattern |
| Wheels outer profile: | 67 cm |
| Weight: | 69 kg |
| Engine: | 4-stroke Kohler Command PRO CV224 |
| Fuel: | gasoline Natural 95 |
| Engine capacity: | 224 cc |
| Cylinder | cast iron sleeve = double engine life |
| Engine working speed: | 3,060 rpm |
| Torque at 2,800 rpm: | 14.9 Nm |
| Engine lubricaton: | pressure lubrication |
| Engine starting: | manual starting with mechanical choke |
