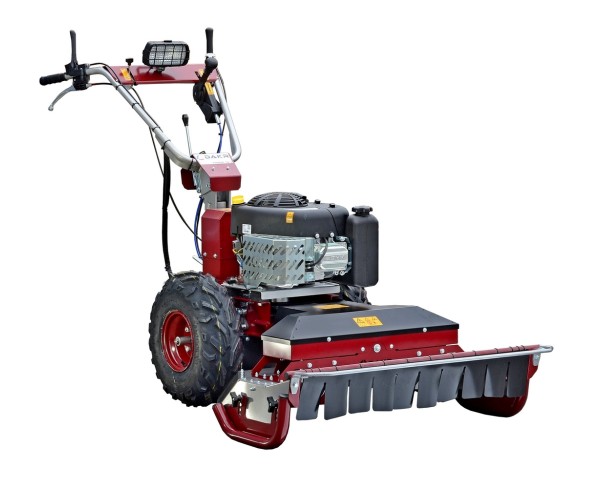

Panter FD3-500 driving unit with M91 mulcher
Panter FD3-500 driving unit with M91 mulcherPanter FD3-500 driving unit with M91 mulcherPanter FD3-500 driving unit with M91 mulcherPanter FD3-500 driving unit with M91 mulcher
Panter FD3-500 driving unit with M91 mulcher

Panter FD3-500 driving unit with M91 mulcher

modular self-propelled mulcher; operating width 91 cm; B&S engine with max. output 15.5 HP; hydrostatic gearbox; differential with locking; single slide control of speed forward and backward; electric start
More information
Order No.:01236.001 + 01236.026
Max. output: 7,280 m2/hour
Max. operating width: 91 cm
Engine: Briggs&Stratton 15.5 HP
Travel: yes, single slide control of speed forward and backward
The combination of the Panter FD3-500 driving unit with the M91 mulcher is an unbeatable machine for its agility and performance. The set-up owes its excellent handling to a classically designed differential with manual locking, which gives you control over wheel travel and directional control at the same time. The mulcher allows the attachment of a seat and more than 20 other work adaptors, which are pictured at the bottom of this page.

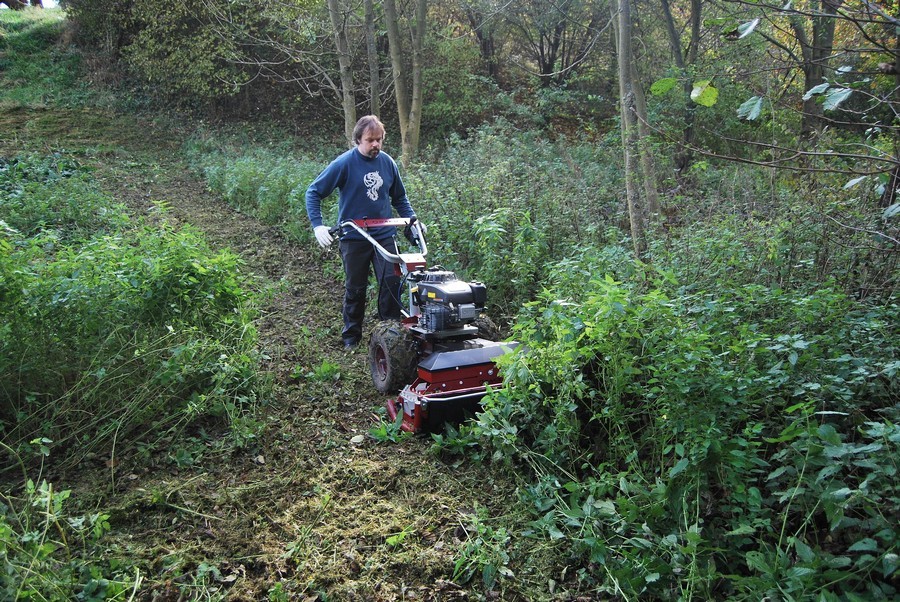

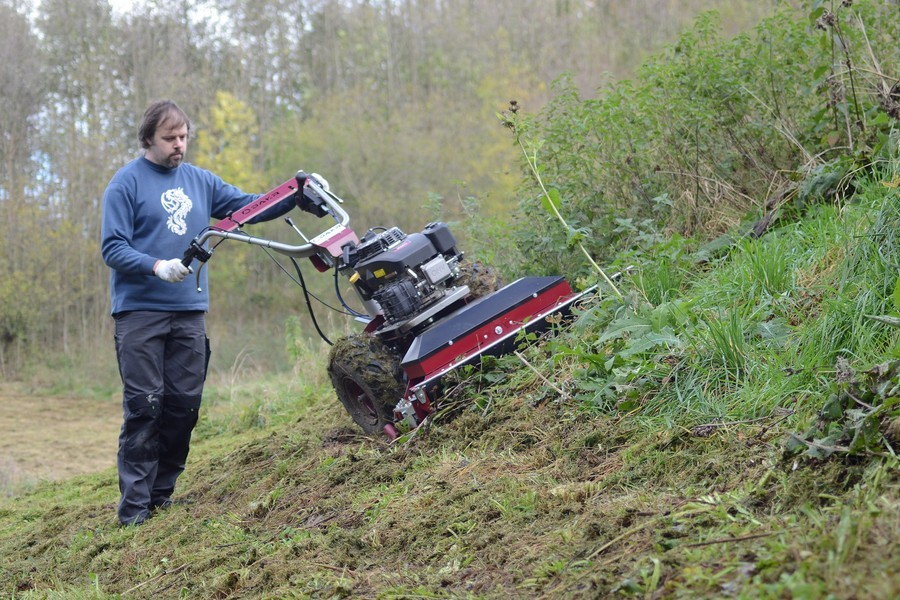

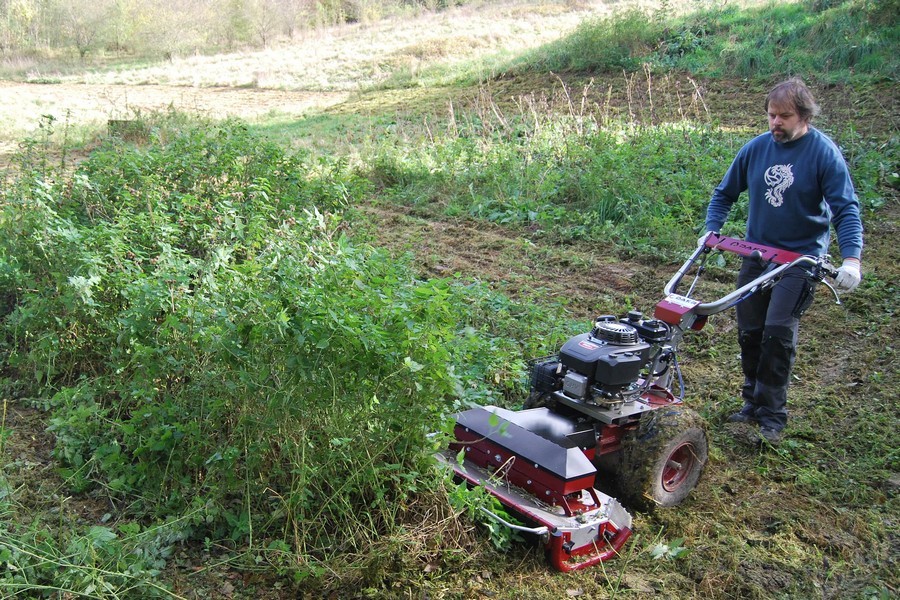

This adaptor can be used in places with many obstacles that need to be avoided, you can simply control it on the slope and you can also cut, for example, grass under bushes that can be driven head-on. Compared to single-rotor mulchers, it leaves a significantly shorter grass mulch spreaded over the area in an easily visible line. The energy consumption of this machine is lower than that of mulchers with an operating width of 1 metre or more, so the M91 allows you to work at a higher travelling speed.
To the driving unit it is possible to connect the seat and the wide range of adaptors such as mower, haymaker, snow blower, cart, sweeping brush, blade, rotavator, branch crusher.

Technicalspecifications:
Options:seat for flat grounds and slight slopes
Max. output:7,280 m2/hour
Max. operating width:91 cm
Stubble height:4 setting position within the range 4-9 cm
Weight:177 kg
Recommended maintained area:unlimited
Travel:yes, single slide control of speed forward and backward
Speeds:forward 0÷8 km/hour, backward 0÷4 km/hour
Axletree:lockable differential
Gearbox:hydrostatic Tuff Torq K46
Other equipment:driving brake, parking brake, headlight, charging battery
Engine vibration attenuation:4 silent bloks
Handlebars:height and side adjustable
Tyres:big blown wheels 480 mm with V-shaped tread pattern
Wheels outer profile:76 cm
Engine:4-stroke Briggs&Stratton I/C, Powerbuilt OHV
Fuel:gasoline Natural 95
Engine capacity:500 cc
Cylinder:cast iron sleeve
Max. engine output:15.5 HP/11.3 kW
Torque at 3,600 rpm:30.2 Nm
Engine lubricaton:spray
Engine starting:electro-starter, manual reserve starter
Slope accessibility:safe slope accessibility guaranteed by the state testing institute 10°
the engine operates safely at a constant tilt of 20°




Panter FD3-500 driving unit with M91 mulcherPanter FD3-500 driving unit with M91 mulcher
Video je se slabším motorem Briggs&Stratton 13,2 HP. Pohonná jednotka Panter FD-3 500 cm3 má výkon 15,5 HP.
